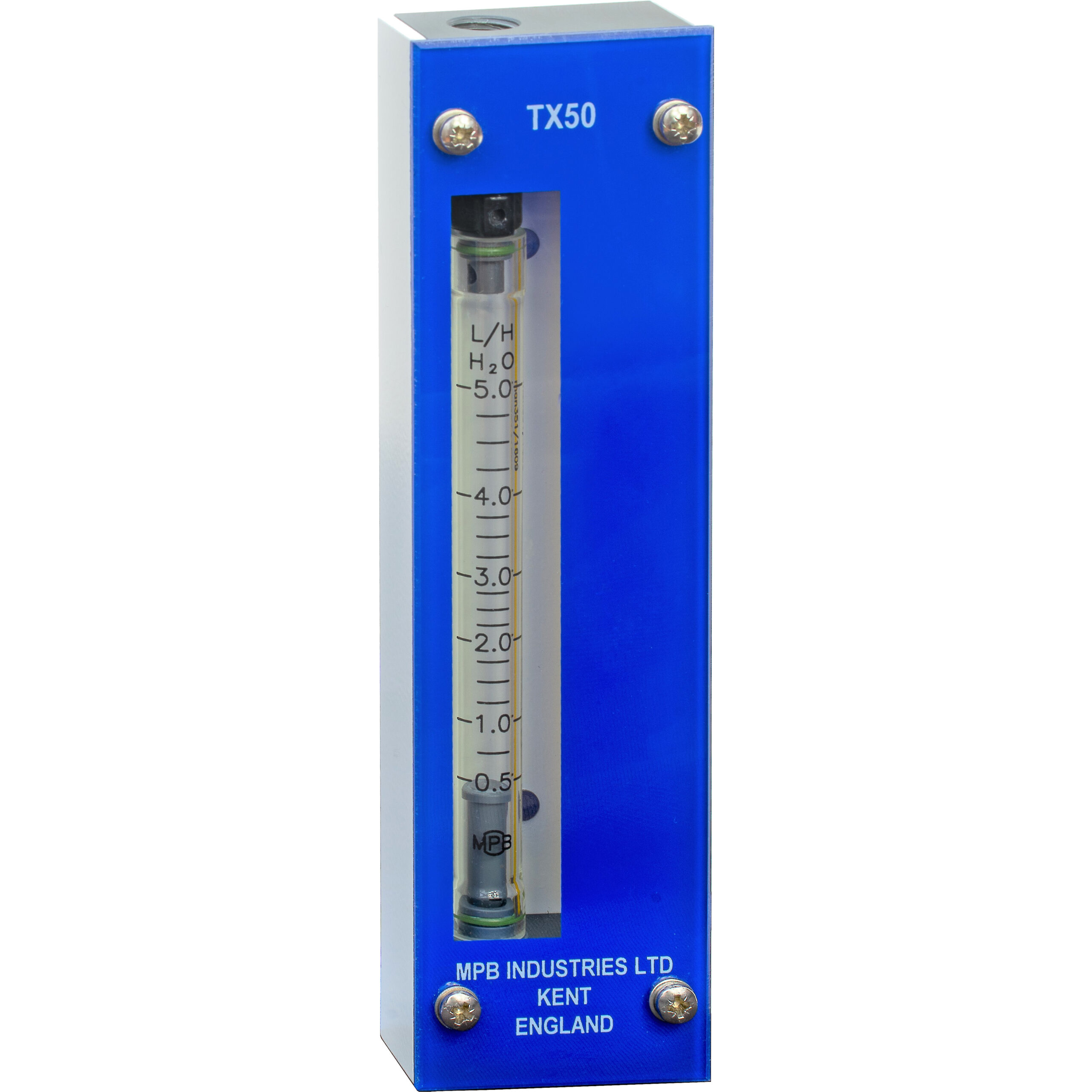

Series TX50 Transmitting Variable Area Flowmeter

GENERAL INFORMATION

The MPB Series TX50 Transmitting Flowmeter has been designed to meet demanding applications where a transmitted signal proportional to flow rate is required.

The TX50 Transmitting Flowmeter was developed from the FA50 Series Flow Alarm and incorporates the same features.

The TX50 Transmitting Flowmeter, whilst having a wide range of standard flow rates, can be used for almost any process liquid or gas.  The materials of construction will assist the designer in selecting a compatible flow transmitter for the medium being processed.

The TX50 Transmitting Flowmeter is ideal for control requirements in the water, chemical and processing industries.



Download Technical Bulletin which shows standard flow rates:  Technical Bulletin

Download Installation Instructions: Installation Instructions

For further information please complete the form below, or contact us direct by telephone or e-mail.

Tel: +44 (0)1622 872401
Email: sales@mpbflowmeters.com



Description

MPB SERIES TX50 FEATURES

  • 4 – 20 mA TRANSMITTING SIGNAL OUTPUT
  • EASILY ADJUSTABLE ZERO AND SPAN SETTINGS
  • STANDARD AND CUSTOMIZED FLOW SCALES
  • EASY IN-SITU TUBE REMOVAL
  • RPVC, OR STAINLESS STEEL CONNECTIONS
  • POLYCARBONATE SAFETY COVER
  • DIRECT READING OF FLOW RATE
  • MINIMAL MAINTENANCE

SPECIFICATION

Chassis: White epoxy coated aluminium

Connections: Rigid PVC (grey), 303 Stainless steel

Process Connections: ¼” BSPPF

Cover: Polycarbonate

Seals: Nitrile, Viton, EPDM, etc

Metering Tube: Borosilicate glass

Scale: Permanently fired black ceramic

Float: Rigid PVC, or 316 Stainless steel

Weight: 550 grams (approx)

Maximum Working Pressure: Gas: 6 bar g (non-shock), Liquid: 10 bar g (non-shock)

Maximum Working Temperature: 600C Nitrile, 100°C Viton

Accuracy:  ± 5% FSD standard, ± 1% repeatability

Connection: 2 metre flying lead

Operating Voltage: 9VDC – 36VDC with reverse-voltage protection

Output Current:  4 – 20 mA with zero and span adjustment
