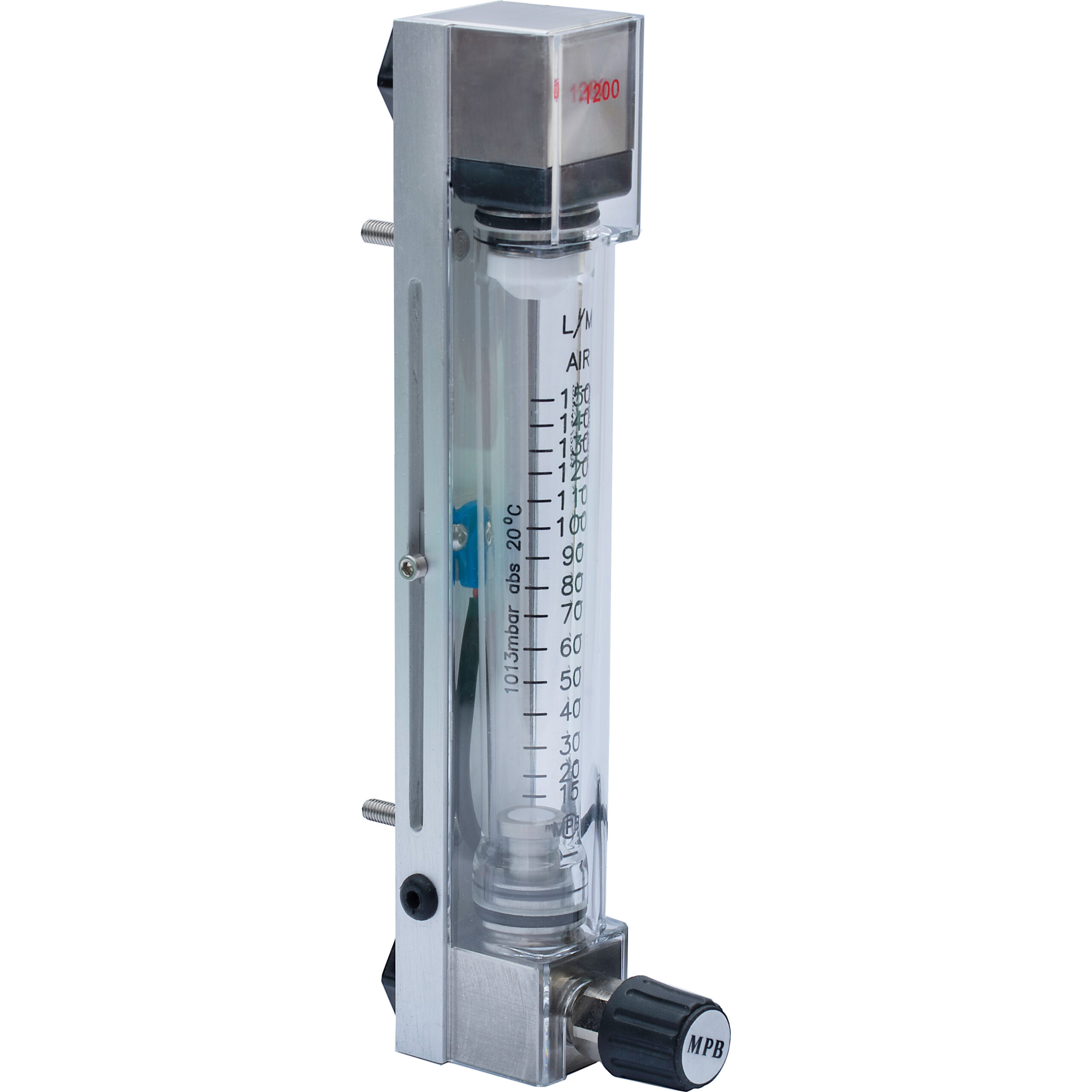

Series 1200 Variable Area Flowmeter with Latching Flow Switch

GENERAL INFORMATION

The MPB Series 1200 Flowmeter with Latching Flow Switch is produced in three standard sizes.  Normally front of panel mounted, but can also be rear of panel mounted and supplied complete with bezel and panel mounting kit.  Three versions are available:-

1200 Long, which has a flow tube length of 295mm, is for use where high resolution scale accuracy is required.

1200 Standard, which has a flow tube length of 138mm, universal standard tube length.

1200 Compact, which has a flow tube length of 93mm, is for use where space is at a premium.

The MPB 1200 Series Flowmeter will give an instantaneous flow rate of virtually any process gas or liquid.

The MPB 1200 Series Flowmeter can be supplied with either nickel plated brass, anodised aluminium alloy, or stainless steel connections.

These can be supplied with straight through, or rear facing connections, with or without integral control valves.

Download Technical Bulletin which shows standard flow rates: Technical Bulletin

For further information please complete the form below, or contact us direct by telephone or e-mail.

Tel: +44 (0)1622 872401
Email: sales@mpbflowmeters.com





Description

MPB SERIES 1200 VARIABLE AREA FLOWMETER WITH LATCHING FLOW SWITCH FEATURES

  • THREE STANDARD LENGTHS AVAILABLE
  • VALVED OR NON-VALVED VERSIONS AVAILABLE
  • STRAIGHT THROUGH, OR REAR FACING CONNECTIONS
  • BEZEL AND MOUNTING KIT AVAILABLE FOR ALL VERSIONS
  • FRICTIONLESS, HENCE LOW HEAD LOSS
  • EASY TO READ SCALE
  • EASY IN-SITU TUBE REMOVAL AND RE-INSTALLATION
  • SUITABLE FOR FRONT, OR REAR OF PANEL MOUNTING
  • POLYCARBONATE SAFETY COVER
  • STANDARD OR CUSTOMISED FLOW SCALES
  • DIRECT READING OF INSTANTANEOUS FLOW RATE
  • NICKEL PLATED BRASS, ANODISED ALUMINIUM AND 303 STAINLESS STEEL CONNECTIONS
  • DIGITAL HALL EFFECT FLOW SWITCH
  • 2 METER LONG FLYING LEAD FROM SWITCH

SPECIFICATION

Chassis: Anodised aluminium to BSEN 12373/AA25

End Blocks: Ni plated brass, 303 Stainless steel, Anodised aluminium alloy

Process Connections: ¼” BSPPF, or ¼” NPTF rear facing, ¼” BSPPF, or ¼” NPTF straight through

Valve Stem: 316 Stainless steel

Cover: Polycarbonate

Seals: Nitrile, Viton, EPDM, etc

Metering Tube: Borosilicate glass (93mm long, 138mm and 295mm long)

Scale: Permanently fired black ceramic

Plumb Bob Floats: Hard anodised aluminium, 316 Stainless Steel

Weight: 500-700 grams

Maximum Working Pressure: Gas: up to 20 bar g (non-shock), Liquid: up to 20 bar g (non-shock)

Maximum Working Temperature: 600C Nitrile, 1000C Viton

Accuracy: ± 5% FSD predicted, ± 2% FSD series calibrated
