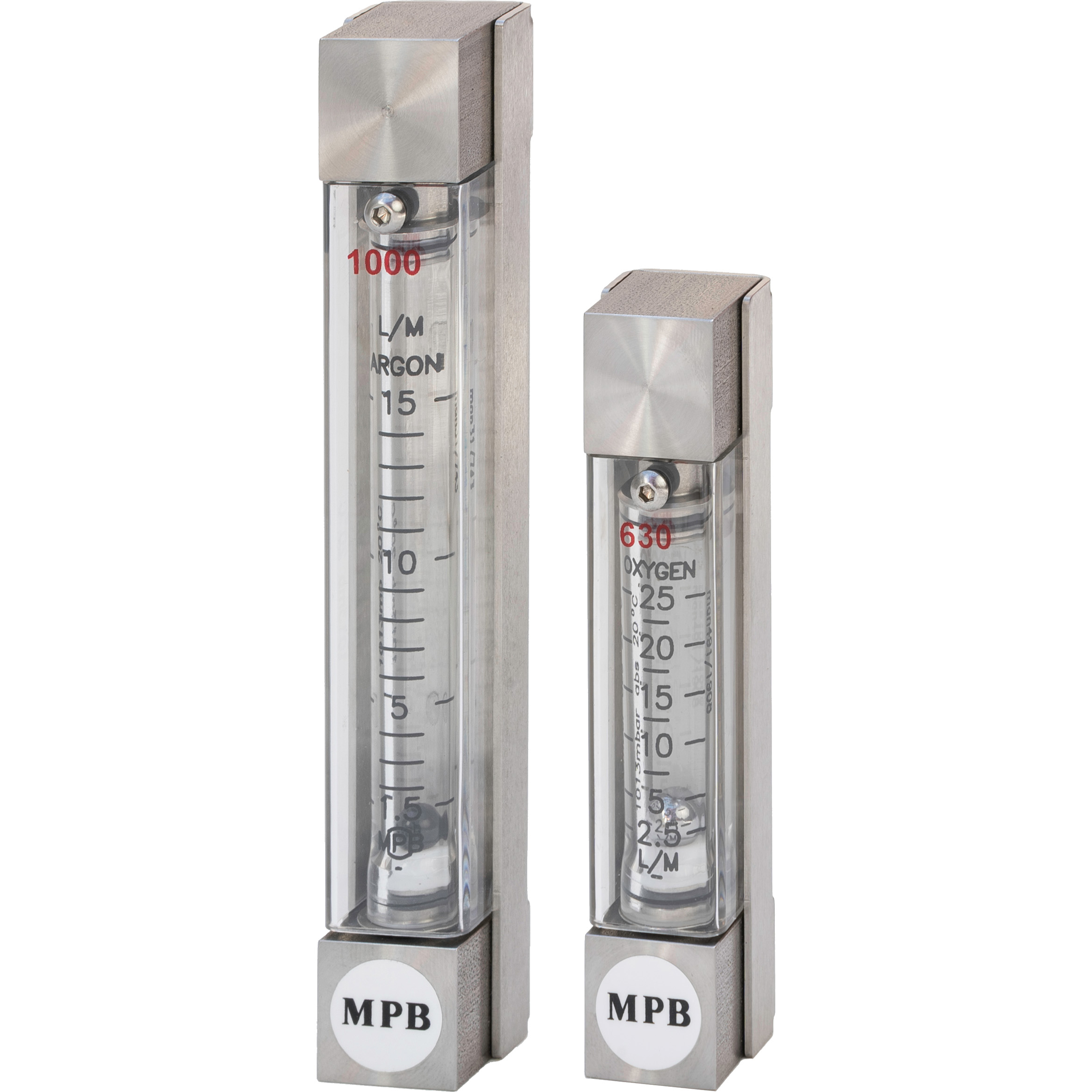

Series 630 and 1000 Variable Area Flowmeters

GENERAL INFORMATION

The MPB Series 630 and 1000 range of Variable Area Flowmeters are suitable for measuring the instantaneous flow rate of virtually any process liquid or gas.

The principle of operation of the variable area flowmeter is quite simple:-

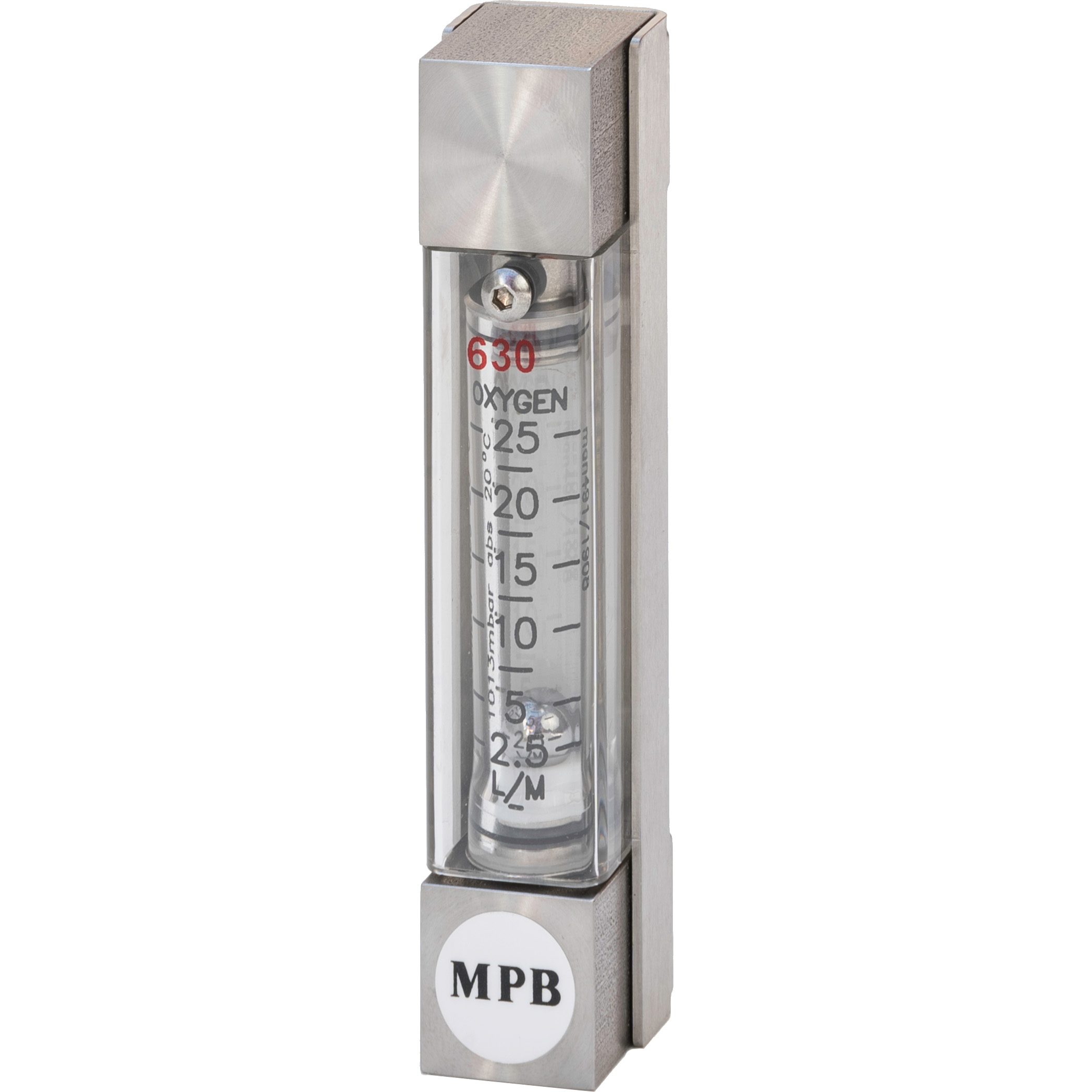

The height attained by the float in its tapered flow tube is directly related to a calibrated scale. The flow should be read from the centre of the ball, or from the top of the plumb bob float.

This range of flowmeters offers very low measurement capability down to 2-20cc/min (Air).

The MPB Series 630 and 1000 flowmeters have rear facing connections as standard.  The instruments are supplied complete with  2 x M3 mounting studs x 10mm long.

Typical applications include analytical instrumentation, gas flow control, small dosing systems, purge metering, leak detection and blending systems.

Typical industries served include brewing, gas analysis, aerospace, pharmaceutical, engine testing, paper, water treatment, oil and gas, etc.

Download Technical Bulletin which shows standard flow rates: Technical Bulletin

Download Installation Instructions: Installation Instructions

For further information please complete the form below, or contact us direct by telephone or e-mail.

Tel: +44 (0)1622 872401
Email: sales@mpbflowmeters.com



Description

MPB SERIES 630 AND 1000 FEATURES

  • ALL STAINLESS STEEL CONSTRUCTION OFFERING EXCELLENT CORROSION RESISTANCE
  • DIRECT READING OF INSTANTANEOUS FLOW RATE
  • EASY TO READ SCALE
  • FRICTIONLESS, HENCE LOW HEAD LOSS

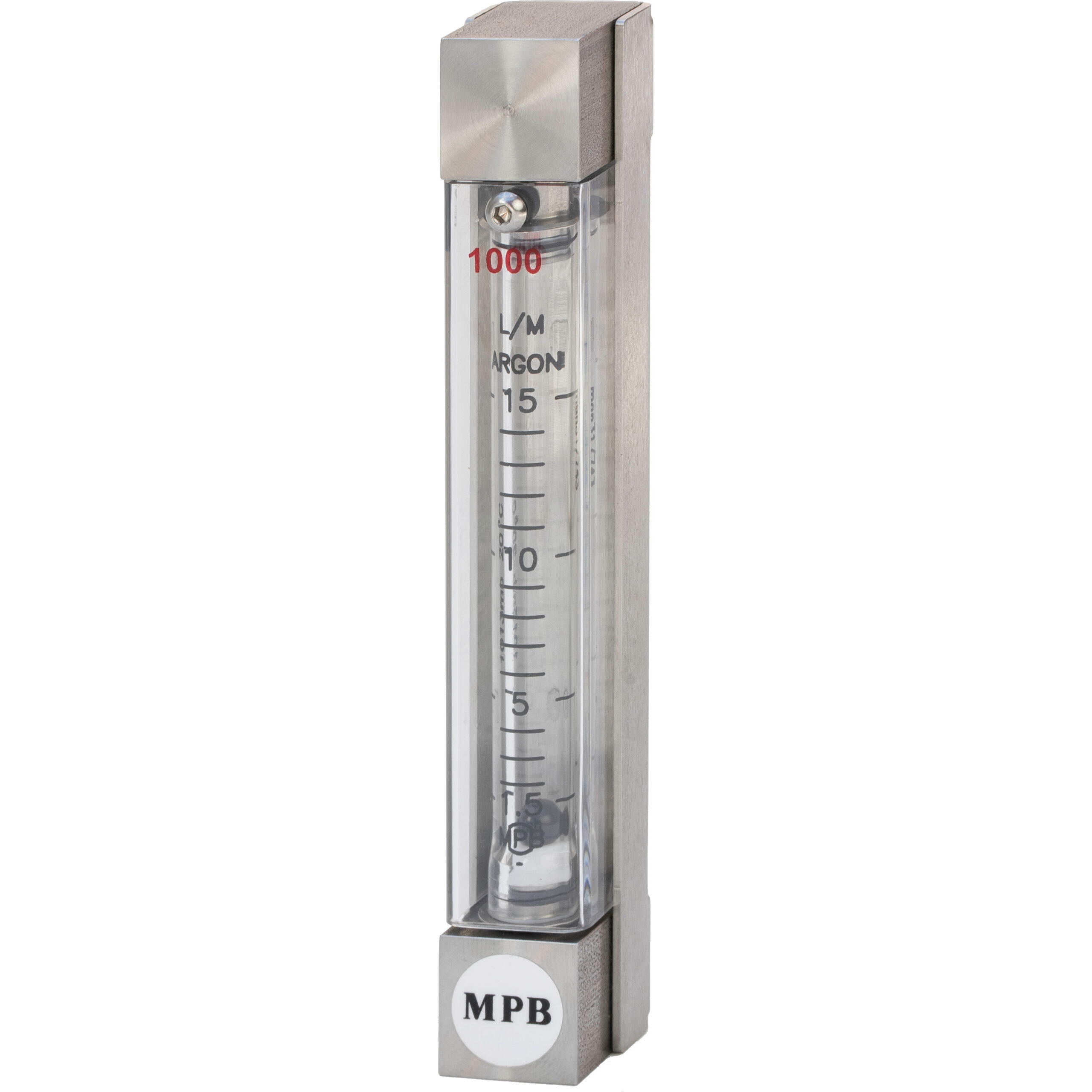

  • 56mm OR 93mm TUBE LENGTHS
  • STANDARD OR CUSTOMISED FLOW SCALES
  • EASY TUBE REMOVAL IN-SITU

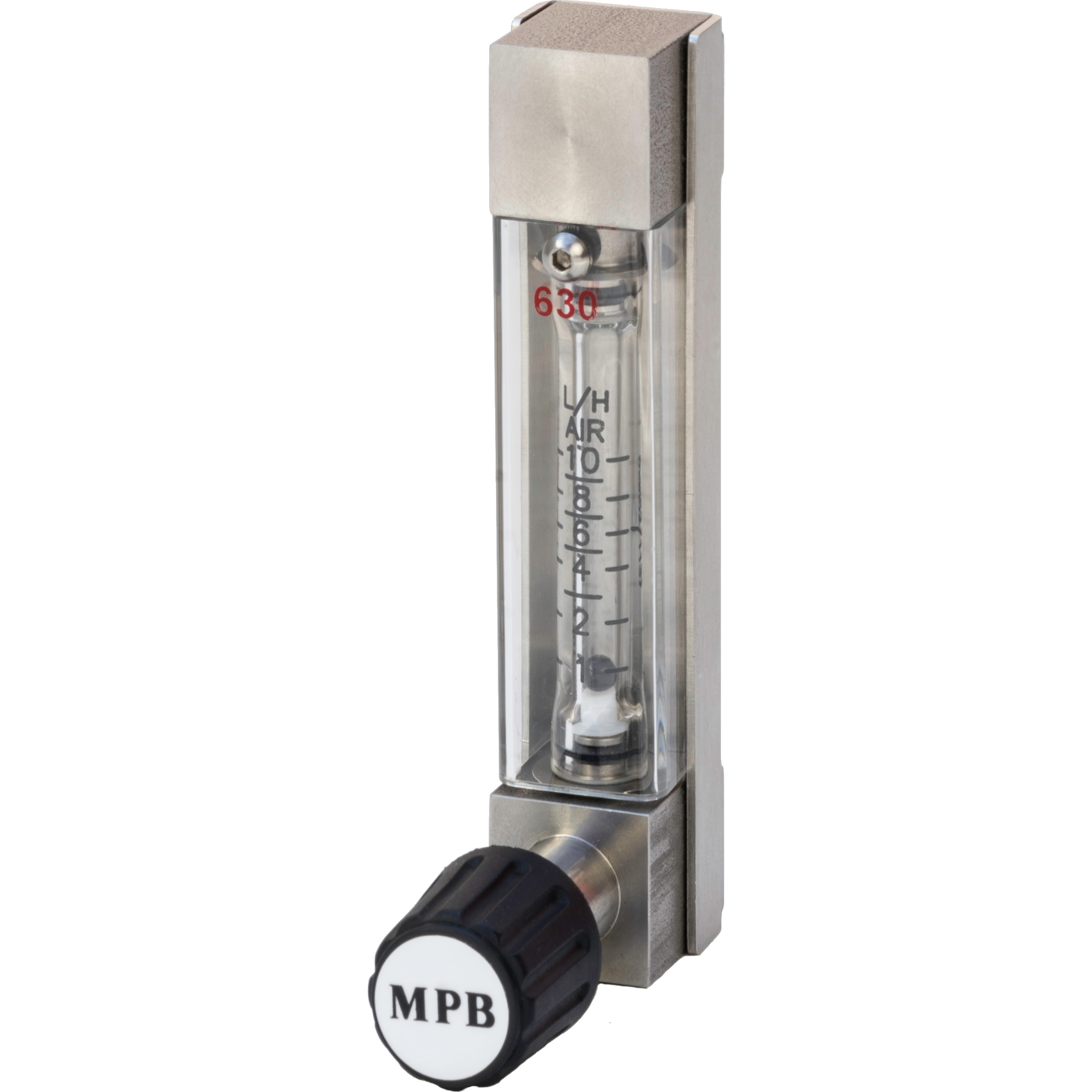

  • VALVED OR NON-VALVED VERSIONS
  • REAR FACING CONNECTIONS AS STANDARD
  • POLYCARBONATE SAFETY COVER
  • REAR OF PANEL MOUNTING KITS AVAILABLE
  • MINIMAL MAINTENANCE
  • LONG SERVICE LIFE
  • ALARM VERSIONS AVAILABLE, CONTACT MPB SALES OFFICE FOR DETAILS

SPECIFICATION

Chassis: 316 Stainless steel

End Blocks: 303 Stainless steel

Process Connections: ⅛” NPTF, or ⅛” BSPPF

Cover: Polycarbonate

Seals: Nitrile, Viton, EPDM, etc

Metering Tube: Borosilicate glass

Scale: Permanently fired black ceramic

Ball Floats: Black Glass, Stainless steel, Ruby, Tungsten, Ceramic

Plumb Bob Floats: Anodised aluminium, 316 Stainless steel, PVC

Weight:  630 – 170 grams, 1000 – 225 grams

Maximum Working Pressure: Gas: up to 20 bar g (non-shock), Liquid: up to 20 bar g (non-shock)

Maximum Working Temperature: 600C Nitrile, 1000C Viton

Accuracy: ± 5% FSD for predicted scales, ± 3% FSD for calibrated scales
