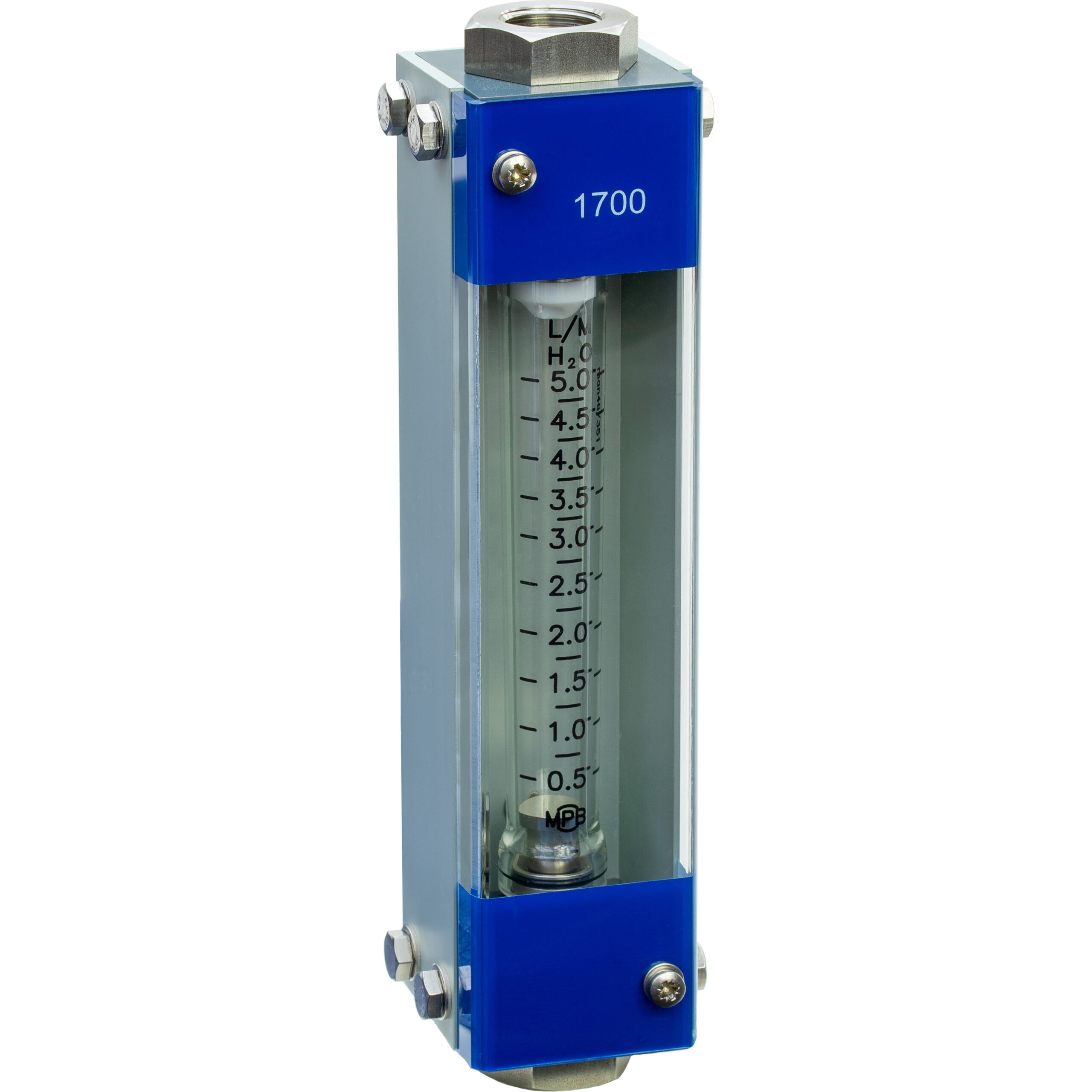

Series 1700 Variable Area Flowmeter

GENERAL INFORMATION

The MPB Series 1700 Variable Area Flowmeter offers an economical solution for the instantaneous reading of a wide range of flows including most process gases and liquids.

The MPB Series 1700 Variable Area Flowmeter is ideally suited where highly corrosive mediums are being metered, ie sodium hypochlorite, saturated brine solutions, etc.

Suitable for in-line, or front of panel mounting.  Full rear of panel mounting kit available, complete with bezel and all fittings.

Download Technical Bulletin which shows standard flow rates: Technical Bulletin

Download Installation Instructions: Installation Instructions

For further information please complete the form below, or contact us direct by telephone or e-mail.

Tel: +44 (0)1622 872401
Email: sales@mpbflowmeters.com



Description

MPB SERIES 1700 FEATURES

  • ECONOMICAL COST
  • STANDARD CONNECTIONS INCLUDE STAINLESS STEEL, RIGID PVC, OR TO CUSTOMER’S SPECIFICATION
  • HIGHLY COMPATIBLE WITH A WIDE RANGE OF PROCESS GASES AND LIQUIDS
  • DIRECT READING OF INSTANTANEOUS FLOW RATE
  • INTEGRAL POLYCARBONATE SAFETY COVER
  • SUITABLE FOR IN-LINE MOUNTING
  • EASY IN-SITU TUBE REMOVAL
  • LONG SERVICE LIFE
  • LOW HEAD LOSS
  • EASILY READ SCALE
  • FULL REAR OF PANEL MOUNTING KIT AVAILABLE (see MPBTB 048)

Chassis: Anodised aluminium to BSEN12373/AA25

End Connections: Rigid PVC, or 303 Stainless steel

Process Connections: 1/4”, 3/8” & 1/2” BSPPF

Cover: Polycarbonate

Seals: Nitrile, Viton, EPDM, etc

Metering Tube: Fully stress-relieved Borosilicate glass

Scale: Permanently fired black ceramic

Plumb Bob Floats: Hard anodised aluminium, 316 Stainless steel, RPVC, or glass filled PTFE

Ball Floats: Glass, 316 Stainless steel, Ceramic, Ruby, Tungsten

Weight: 700 grams (typical)

Maximum Working Pressure: Gas: up to 20 bar g (non-shock), Liquid: up to 20 bar g (non-shock)

Maximum Working Temperature: 60°C, Nitrile 1000C Viton

Accuracy: ± 5% FSD for predicted scales,  ± 2% FSD for calibrated scales
