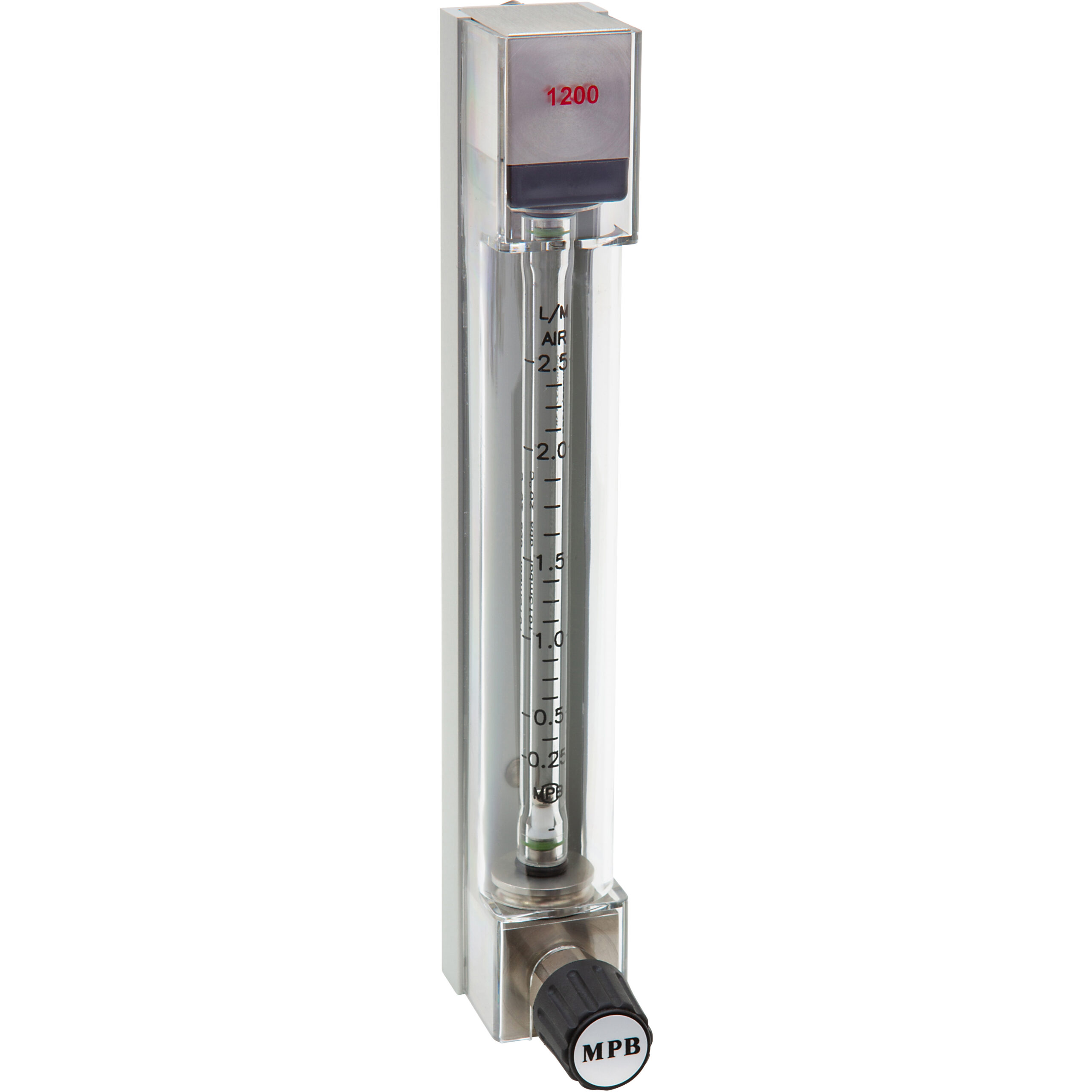

Standard Series 1200 Variable Area Flowmeter
The MPB Standard Series 1200 Flowmeter has a flow tube length of 138mm, universal standard tube length.
The MPB Series 1200 is an industry standard and widely used flowmeter. It is normally front of panel mounted, but can also be rear of panel mounted and supplied complete with bezel and mounting kit.
The MPB1200 Series Flowmeter will give an instantaneous flow rate of virtually any process gas or liquid.
The MPB 1200 Series Flowmeter can be supplied with either nickel plated brass, anodised aluminium alloy, or stainless steel connections. An alarmed version is also available.
These can be supplied with straight through, or rear facing connections, with or without integral control valves.
Features
- Valved, or non-valved versions available
- Straight through, or rear facing connections
- Suitable for front, or rear mounting using optional panel mounting kit
- Easy in-situ tube removal and re-installation
- Standard and customised flow scales
- Alarm options available
Specification
- Chassis: Anodised aluminium to BSEN12373/AA25
- End Blocks: Ni plated brass, 303 Stainless steel, Anodised aluminium alloy
- Process Connections: ¼” BSPPF, or ¼” NPTF rear facing, or straight through
- Valve Stem: Stainless steel
- Cover: Polycarbonate
- Seals: Nitrile, Viton, EPDM, etc
- Metering Tube: Borosilicate glass (93mm long)
- Scale: Permanently fired black ceramic
- Ball Floats: Glass, Stainless steel, Ceramic, Ruby, Tungsten
- Plumb Bob Floats: Hard anodised aluminium, 316 Stainless Steel
- Weight: 620 grams
- Maximum Working Pressure: Gas: up to 20 bar g (non-shock), Liquid: up to 20 bar g (non-shock)
- Maximum Working Temperature: 600C Nitrile, 1000C Viton
- Accuracy: ± 5% FSD predicted, ± 2% FSD series calibrated
