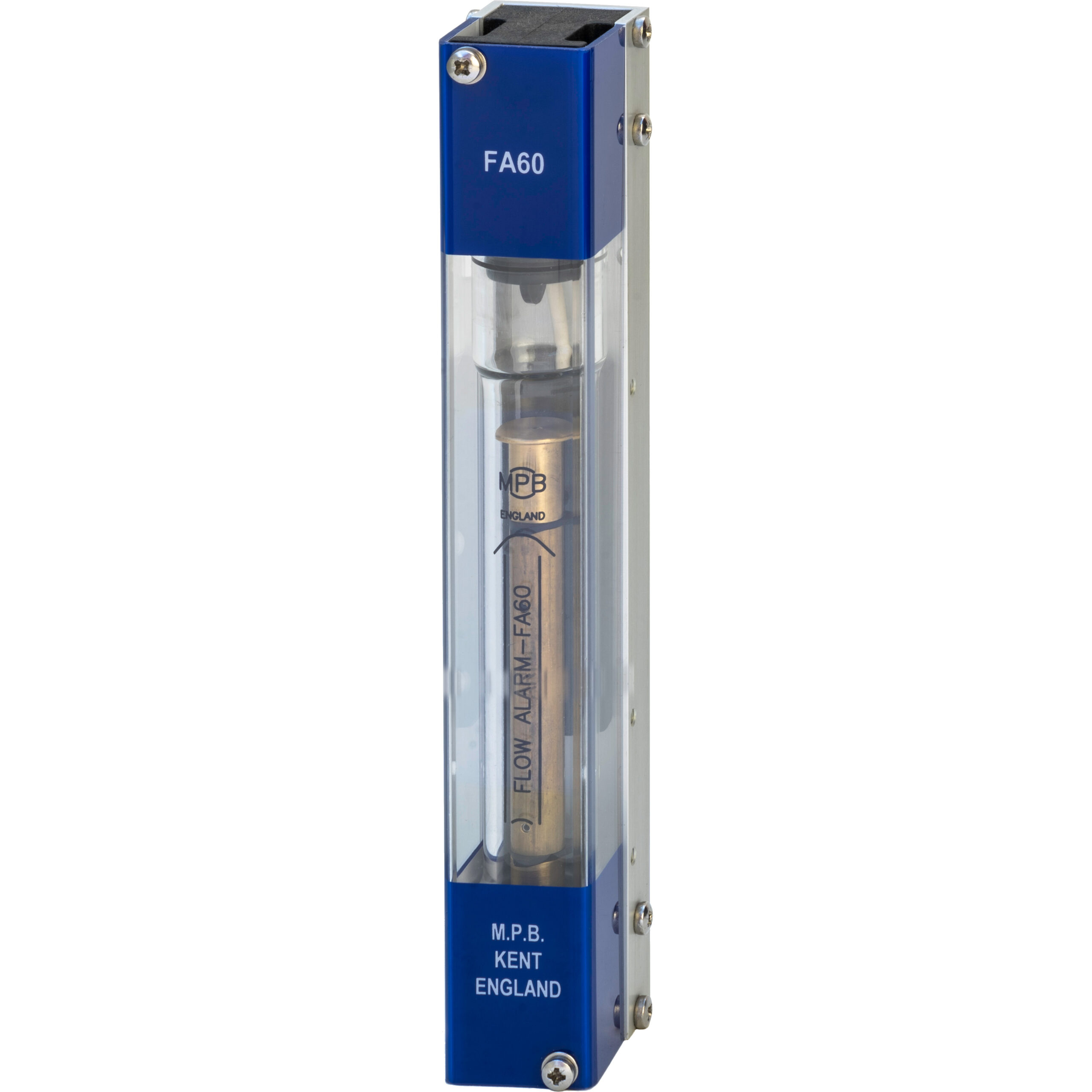

Series FA60 Flow Alarm

GENERAL INFORMATION

The MPB Series FA60 Flow Alarm will give a switched output at a predetermined flow, i.e. 1, 2, 4, 5, 8, 10, 12 or 24  L/min.

The FA60 Flow Alarm, being a low-pressure drop device, can be positioned either in-line or on a bypass system.

Typical applications include pump failure alarm and detection of filter blockages etc.

The principle of operation is quite simple:-

Normal flow will lift the float up into the flow tube, but when the flow falls below a pre-set level the float drops and a magnet held within the float triggers a reed switch.

Download Technical Bulletin: Technical Bulletin

Download Installation Instructions: Installation Instructions

For further information please complete the form below, or contact us direct by telephone or e-mail.

Tel: +44 (0)1622 872401
Email: sales@mpbflowmeters.com



Description

SERIES FA60 FLOW ALARM FEATURES

  • INSTANTANEOUS ALARM SIGNAL
  • STANDARD RANGE OF ALARM SETTINGS
  • EASY TUBE REMOVAL IN-SITU
  • FRICTIONLESS, HENCE LOW HEAD LOSS
  • DUAL SWITCH OPTION AVAILABLE
  • POLYCARBONATE SAFETY COVER
  • MINIMAL MAINTENANCE, LONG SERVICE LIFE

SPECIFICATION

Chassis: Anodised aluminum to BSEN12373/AA25

End Connections: Glass filled nylon

Process Connections: ½” BSPPF

Cover: Polycarbonate

Seals: Viton

Metering Tube: Borosilicate glass

Scale: Permanently fired black ceramic

Float: Brass

Weight: 600 grams

Maximum Working Pressure: 10 bar g (non-shock)

Maximum Working Temperature: 1000

Maximum Ambient Temperature:  600

Switch Rating: 240VAC maximum, 3A maximum, 100VA maximum

Ranges: Switch at 1, 2, 4, 5, 8, 10, 12 or 24 L/min

Power Supply Lead: 1 metre long (no isolation)
