Series FA50 Flow Alarm
Home Series FA50 Flow Alarm

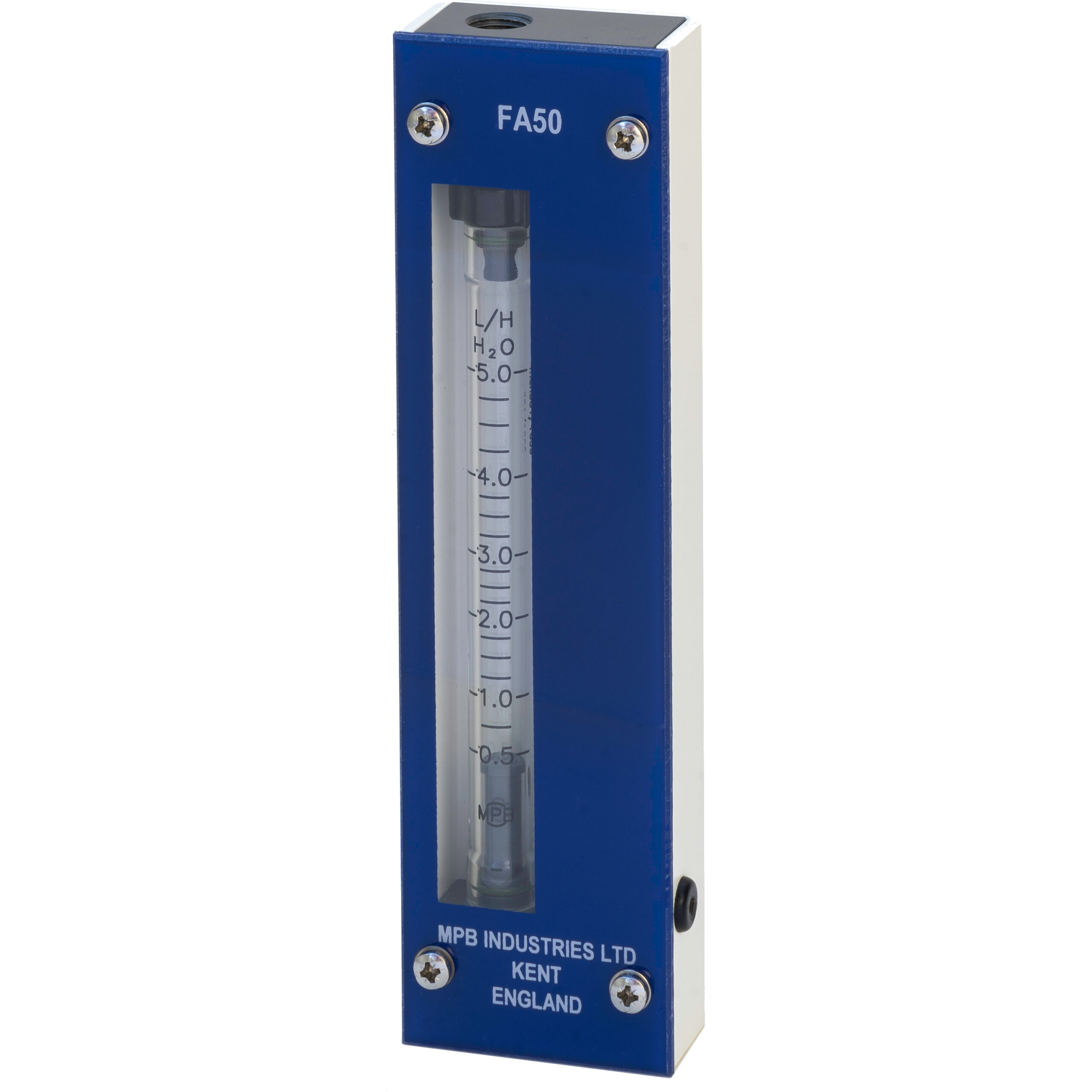

Series FA50 Flow Alarm

GENERAL INFORMATION

The MPB Series FA50 Flow Alarm offers a flowmeter and adjustable flow alarm system within the same unit. The FA50 Flow Alarm is suitable for most common process liquids and gases and utilises the variable area flowmeter principle of operation, namely, as flow increases the float rises within a tapered flow tube and hence the flow rate can be read directly and alarm points set.

The alarm system uses the reed switch principle and is triggered by a small magnet housed within the float.

Download Technical Bulletin which shows standard flow rates: Technical Bulletin

Download Installation Instructions: Installation Instructions

For further information please complete the form below, or contact us direct by telephone or e-mail.

Tel: +44 (0)1622 872401
Email: sales@mpbflowmeters.com



Categories: ,

Description

MPB SERIES FA50 FLOW ALARM FEATURES

  • ADJUSTABLE ALARM/SET POINT
  • LATCHING CONTACT MECHANISM
  • STANDARD OR CUSTOMISED FLOW SCALES
  • EASY IN-SITU TUBE REMOVAL
  • RPVC, OR STAINLESS STEEL CONNECTIONS
  • POLYCARBONATE SAFETY COVER
  • DIRECT READING OF FLOW RATE
  • FRICTIONLESS, HENCE LOW HEAD LOSS
  • MINIMAL MAINTENANCE, LONG SERVICE LIFE

SPECIFICATION

Chassis: White epoxy coated aluminum

End Blocks: Rigid PVC, 303 Stainless steel

Process Connections: ¼” BSPPF

Cover: Polycarbonate

Seals: Nitrile, Viton. EPDM, etc

Metering Tube: Borosilicate glass

Scale: Permanently fired black ceramic

Float: Rigid PVC, or 316 Stainless steel

Weight: 550 grams (approx.)

Maximum Working Pressure: 10 bar g (non-shock)

Maximum Working Temperature: 600C Nitrile, 1000C Viton

Accuracy: ± 5% FSD predicted

Alarm Switch rating: 100V max. 1 amp max., 10VA max. Resistive load

Connection: 2 metre flying lead
