Series FA140 and FA280 Variable Area Flowmeter/Alarm
Home Series FA140 and FA280 Variable Area Flowmeter/Alarm

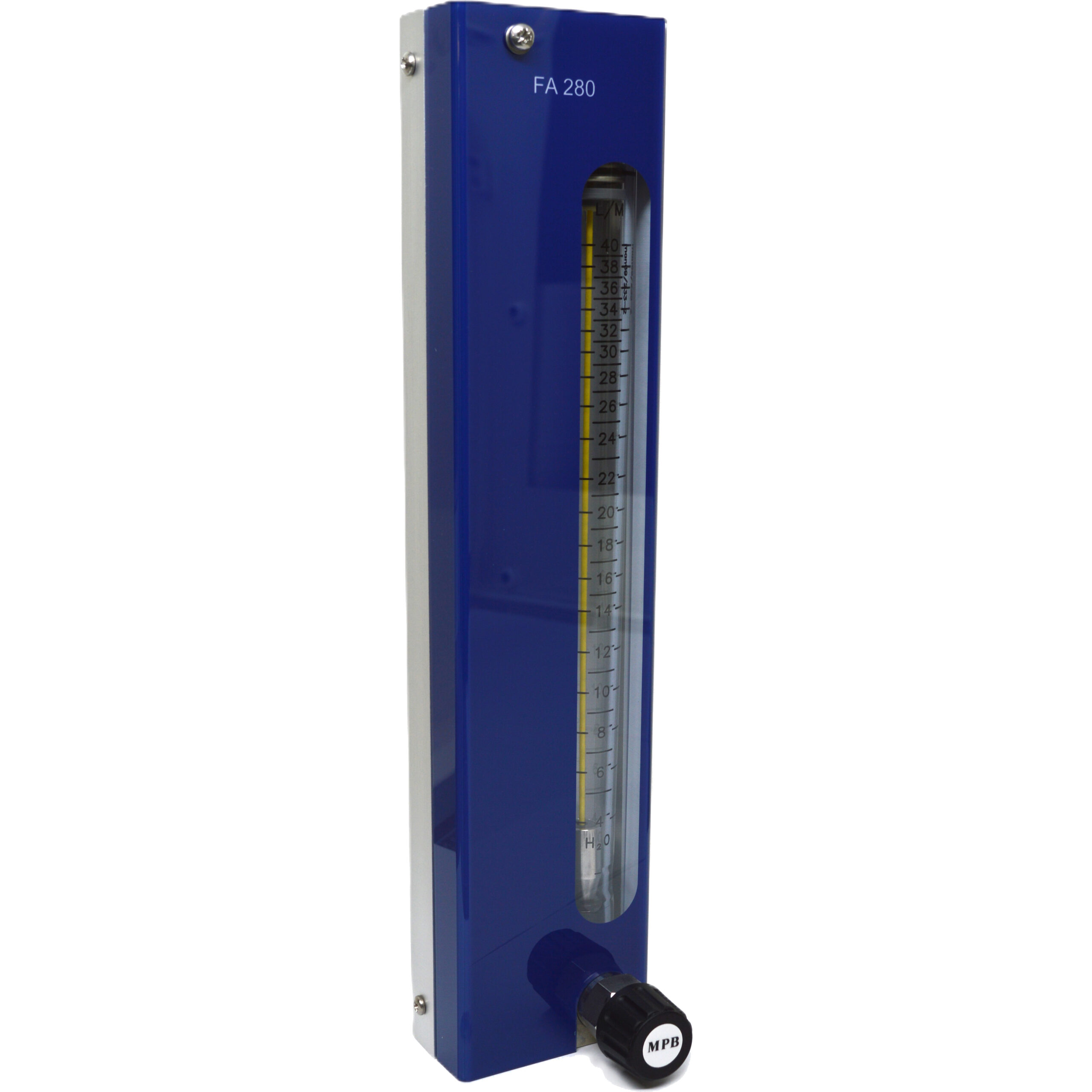

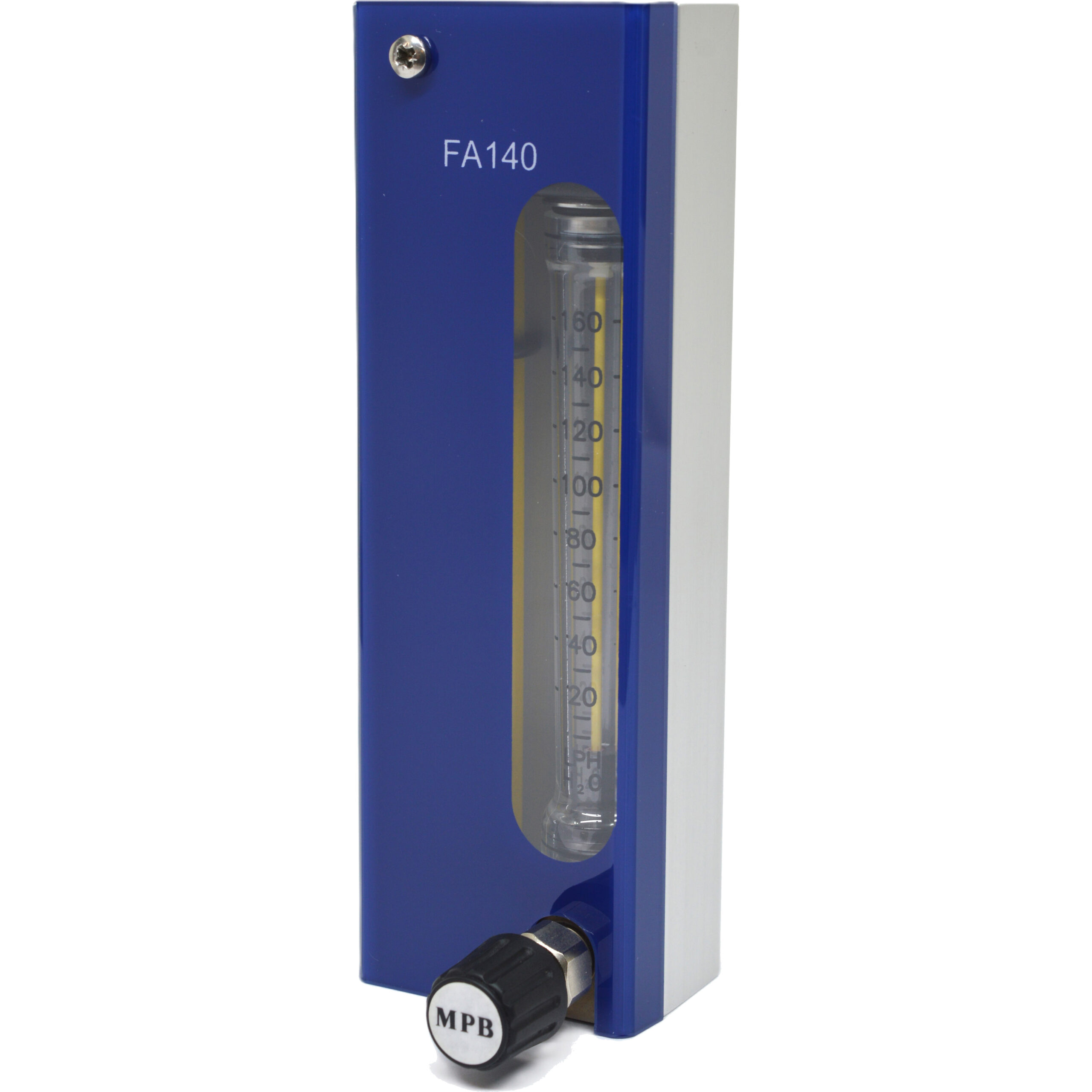

Series FA140 and FA280 Variable Area Flowmeter/Alarm

The MPB Series FA140 and FA280 Flowmeters/Alarms were developed to meet the requirement for flowmeters with an integral flow control valve and incorporating a latching alarm device, being capable of switching up to a 5 Amp resistive load.

The FA140 and FA280 Flowmeters/Alarms utilise the guided float principle to give maximum flow rates and a stable indication of flow.  These flowmeter offers an economical solution for cost effective systems using pumps or level controls etc.  The latching alarm eliminates the need for costly electronic circuitry.



Download Technical Bulletin which shows standard flow rates: Technical Bulletin

For further information please complete the form below, or contact us direct by telephone or e-mail.

Tel: +44 (0)1622 872401
Email: sales@mpbflowmeters.com



Categories: ,

Description

MPB SERIES FA140 AND FA280 FLOWMETER/ALARM FEATURES

  • DIRECT READING OF INSTANTANEOUS FLOW RATE
  • EAST TO READ
  • EASY IN-SITU TUBE REMOVAL
  • NICKEL PLATED BRASS, OR STAINLESS STEEL CONNECTIONS
  • COMPLETE WITH FLOW CONTROL VALVE
  • SIMPLE LATCHING ALARM DEVICE
  • SWITCHES UP TO 5 AMP RESISTIVE LOAD
  • MINIMAL MAINTENANCE, LONG SERVICE LIFE
  • STRAIGHT THROUGH, OR REAR FACING CONNECTIONS

SPECIFICATION

Chassis: Anodised aluminium to BSEN12373/AA25

End Blocks: Ni plated brass, or 303 Stainless steel

Process Connections: FA140: ¼” BSPPF, FA280: ½” BSPPF

Valve: 316 Stainless steel

Cover: Polycarbonate

Metering Tube: Borosilicate glass

Scale: Permanently fired black ceramic

Float: Rigid PVC, or 316 Stainless Steel

Weight: FA140: 800 grams, FA280: 1500 grams

Maximum Working Pressure:

 Gas: 6 bar g (non-shock)

 Liquid: 10 bar g (non-shock)

Maximum Working Temperature: 600C Nitrile, 1000C Viton

Accuracy: ± 5% FSD predicted

Switch rating: 240VAC 5 Amp resistive load or 100V max. 1 amp max., 10VA max. Resistive load

Connection: 2 metre flying lead
