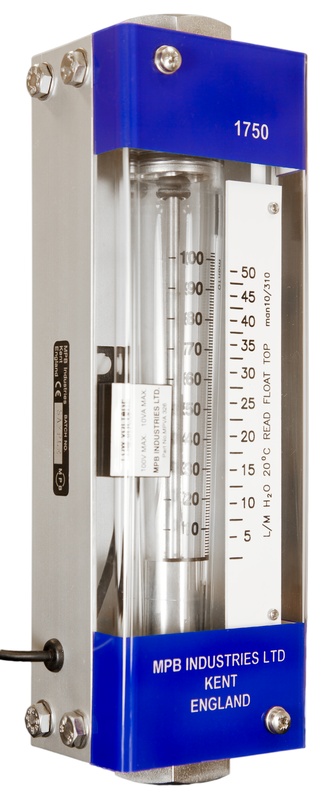

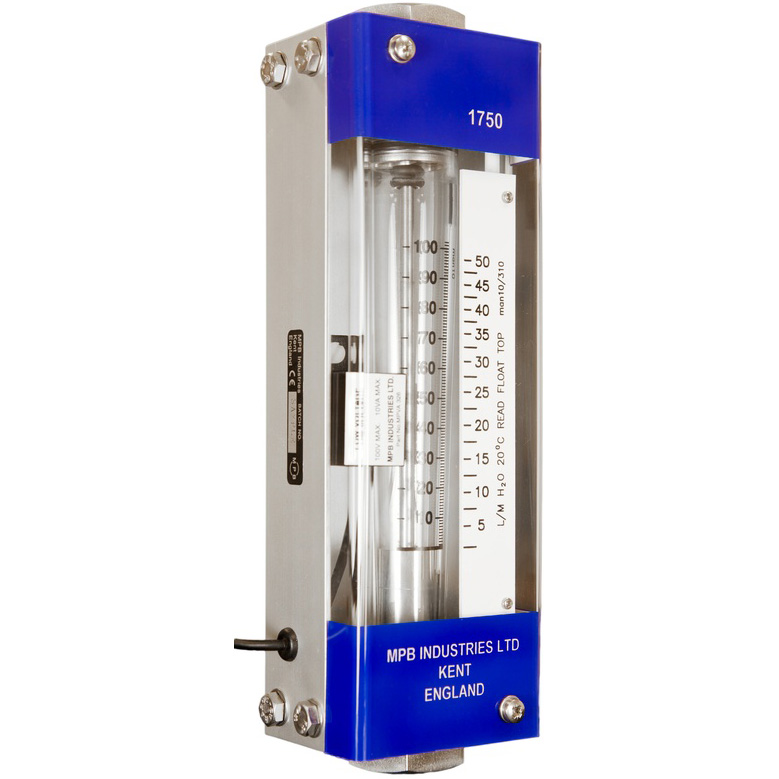

Series 1750 Variable Area Flowmeter with optional latching alarm
The MPB Series 1750 range of Variable Area Flowmeters offer an excellent means of instantaneous flow rate measurement.
The materials of construction offer compatibility to a wide range of industrial process mediums.
The 1750 Flowmeter can be fitted with Hi and Lo latching alarms.
The end connections can be supplied in Stainless steel, or rigid PVC.
The units are fitted with a calibrated scale. A metric scale of 100mm is permanently fired on the tube. A useful blank scale plate can also be provided for customers own calibrations if required.
The 1750 Flowmeter can be used to measure the flow rate of most process gases and liquids.
Ranges up to 125 L/min of water (or 3000 L/min air @ 1013 mbar abs 200C) are supplied as standard.
An economical latching alarm device is also available, this enables the alarm to remain activated whilst flow is above or below a set point. This reduces expensive electronic circuitry and is ideal for remote and process control applications.
Features
- Standard and customised flow scales
- Metric scale. Plain scale plate for customer calibration can be supplied
- Economical latching alarm(s)
- Easy in-situ tube removal and re-installation
- Suitable for in-line, or panel mounting
- Guided floats are used on all ranges giving a stable reading
- Can be supplied with flanges
- Can be used in conjunction with CV200 and CV300 Flow Control Valves
Specification
- Chassis: Anodised aluminium to BSEN12373/AA25
- End Blocks: Rigid PVC, or 316 Stainless steel
- Process Connections: ¼”, ½”, ¾” & 1” BSPPF, or NPTF
- Cover: Polycarbonate
- Seals: Nitrile, Viton, EPDM, etc
- Metering Tube: Fully stress-relieved Borosilicate scale glass with metric 0-100mm permanently fired scale
- Scale: Adjustable calibrated scale (blank scale if required). Permanently fired black ceramic
- Floats: Hard anodised aluminium, 316 Stainless steel, PVC
- Weight: 1100 grams
- Maximum Working Pressure: Gas: up to 10 bar g (non-shock), Liquid: up to 12 bar g (non-shock)
- Maximum Working Temperature: 600C Nitrile, 1000C Viton
- Accuracy: ± 5% FSD predicted
- Optional Alarm Rating: 0.5 A <50V AC, 10VA Max., 0.5 A <75V DC, 10W Max, Contacts N/O
- Connection: 2 metre flying lead, or supplied to customer required length
- Flow reading: To be taken from scale, level with top float
