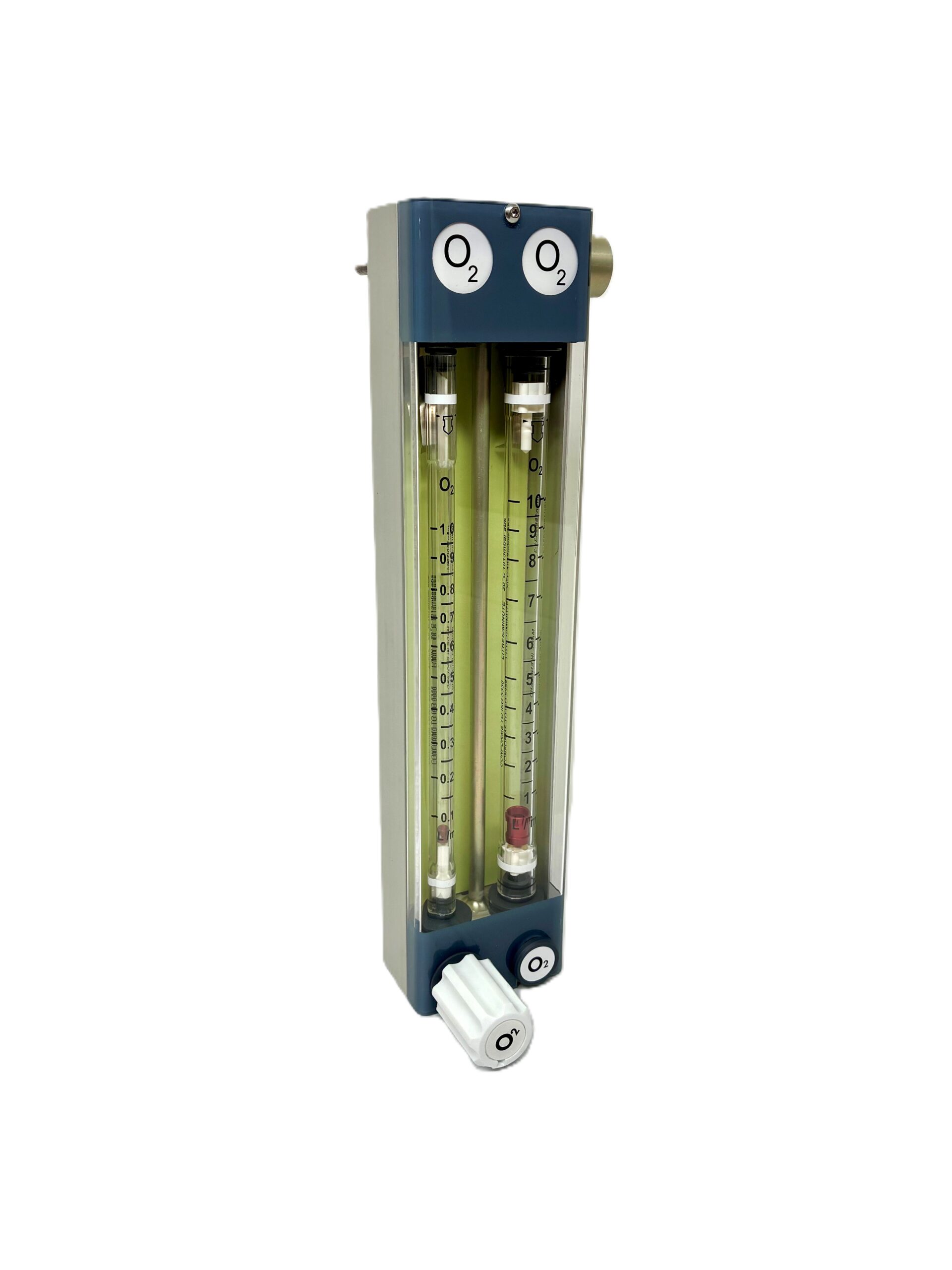

Series 1600 Cascade Dual Tube Veterinary Gas Variable Area Flowmeter
The MPB Series 1600 Dual Tube Cascade Flowmeter is designed for applications where a high accuracy is required across conditions where the normal 10:1 turndown ratio needs to be exceeded, particularly where high accuracy is required for the first readings, which can be displayed on the first flow tube.
Features
- All MPB flowmeters for anaesthetic gases conform to ISO 5358 / BS 4272 being electrically conductive
- MPB can also supply complete tube and float assemblies independently
- Accuracy of measurement is to class 2.5 VDI/VDE 3513 or better
- Process connections: Alochromed Aluminium, ¼” BSPPF, or ISO 23mm taper outlet. (Please state when ordering)
- Our MPB design team will be pleased to discuss existing or new products, i.e. customised designs, scales, tube lengths, etc
- Colour banding supplied as standard
Standard Flow Rates
- 0.1-1 L/min Air and 1-10 L/min Air
- 0.1-1 L/min 02 and 1-10 L/min 02
- 0.1-1 L/min N20 and 1-10 L/min N2O
- Please note that we have a wide range of flow rates to suit these instruments. Please contact MPB sales office for full details
