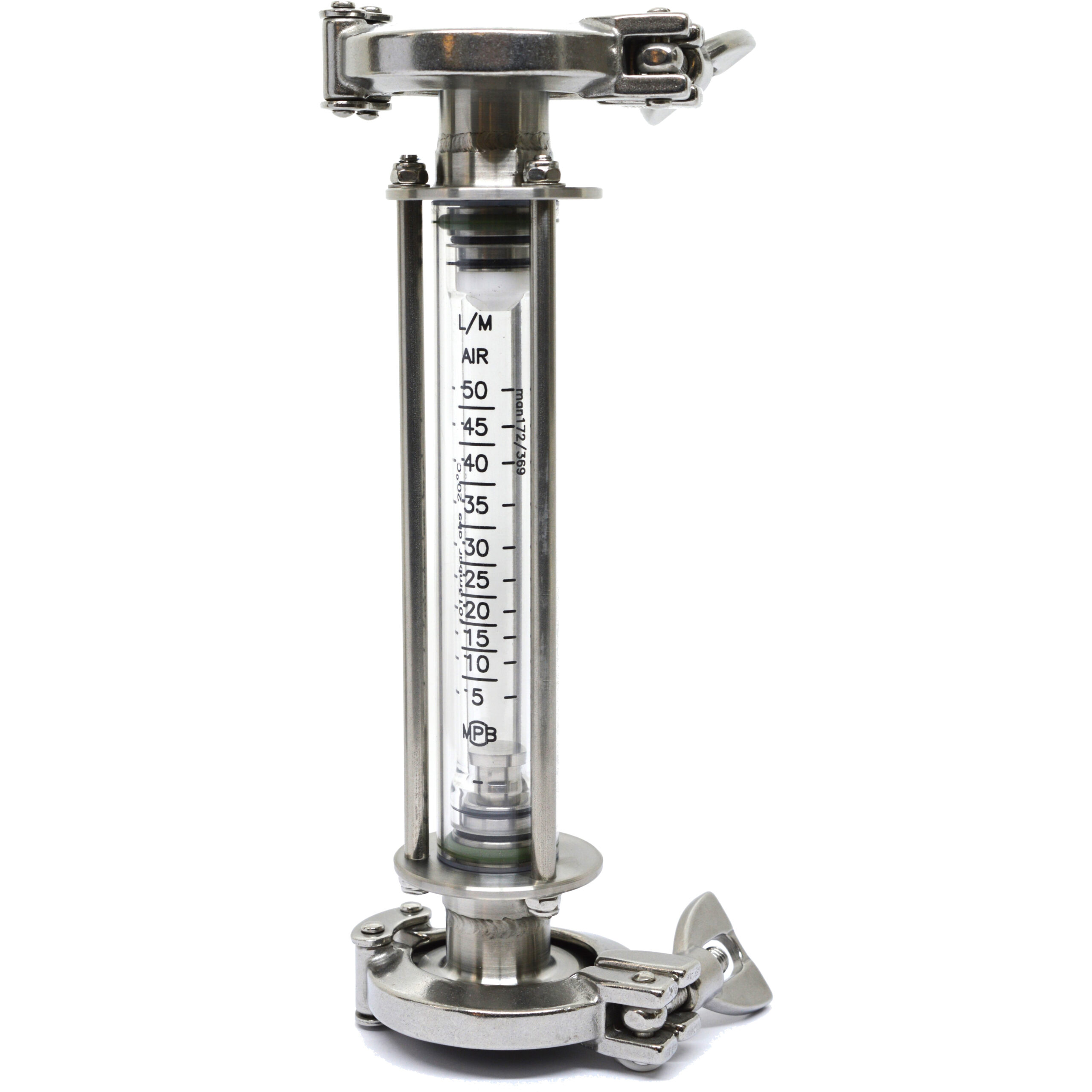

Series 1200H Hygienic Variable Area Flowmeter
The MPB Series 1200H Hygienic Flowmeter is manufactured from stainless steel throughout, with the exception of fully stress relieved flow tube. The flow tube is calibrated with a permanently fired black scale and can be supplied with a white backing if required.
The unit is easily removed from the line with Triclamp stainless steel connections where the flowmeter can easily be cleaned.
For protection, the 1200H Hygienic Flowmeters are fitted with a tubular, virtually unbreakable, polycarbonate safety covers.
A wide range of flow tubes are available and MPB can calibrate and scale tubes to customers’ requirements.

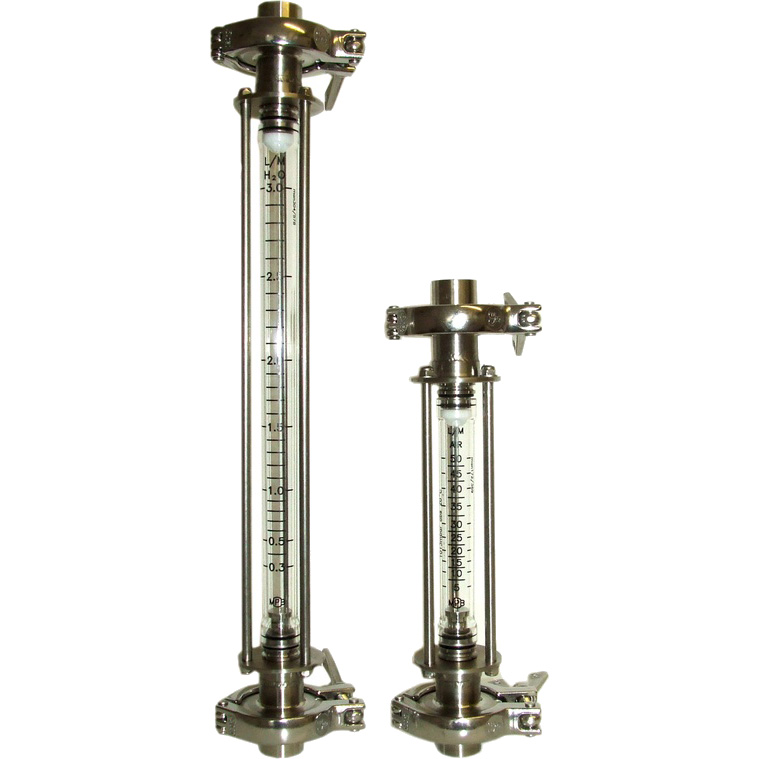

The 1200H Hygienic Flowmeter has a flow tube length of 138mm. The MPB Long Series 1200HL Hygienic Flowmeter has a flow tube length of 295mm, is for use where high resolution scale accuracy is required.
Features
- Two standard lengths available
- Standard and customised flow scales
- Easy in-situ tube removal and re-installation
Specification
- End Connections: Stainless steel 25mm Triclamp Hygienic fittings
- Tubular Safety Cover: Polycarbonate
- Seals: Nitrile, Viton, EPDM, etc
- Metering Tube: Borosilicate glass (138mm and 295mm long)
- Scale: Permanently fired black ceramic
- Plumb Bob Floats: Stainless steel
- Ball Floats: Glass, Stainless steel, Ceramic, Ruby, Tungsten
- Weight: 570/670 grams (standard)
- Maximum Working Pressure: Liquid: up to 20 bar g (non-shock)
- Maximum Working Temperature: 60°C Nitrile, 1000C Viton
- Accuracy: ± 5% FSD predicted, ± 2% FSD series – calibrated
