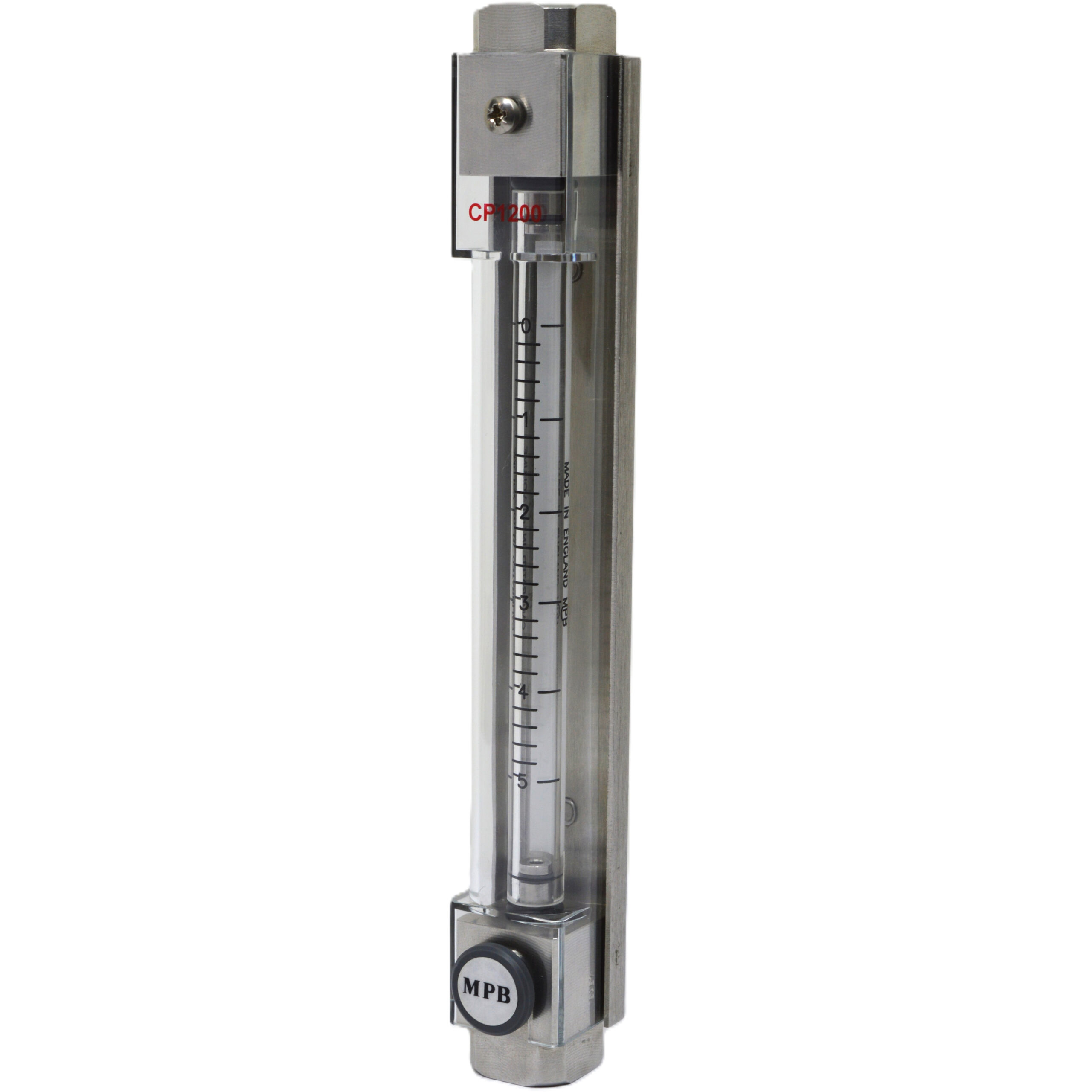

Series CP1200 Calibration Cylinder
This range of precision calibration cylinders have been designed to meet the requirements of high accuracy and robust construction where metering low capacity outputs is essential.
This product range is usually supplied with threaded connections; however, flanges can be supplied if specified.
Ideal for use as a low flow pump setting gauge, or pump rate checking.
Materials of construction include 316 Stainless steel, super duplex Stainless steel, titanium, Hastelloy, rigid PVC and polypropylene. These are typical of the specifications MPB can provide.
Capacities available for this product from 2ml through to 20ml.
Features
- Very low calibration scales to 2ml
- Permanently fired scales with white backing to give excellent clarity
- Pump setting gauge
- Pump rate checking
- Fully traceable hydrostatic pressure certificate and material certification supplied
- Special scales ‘down read’ if required
- 316 Stainless steel safety cover available if required
- Mounting brackets available if required
- Calibrated scales with traceable certificates where requested
Specification
- End Connections: 316 Stainless steel, Super Duplex, Stainless steel, Titanium, Hastelloy, Rigid PVC and Polypropylene
- Threaded, or flanged
- Very Low Capacities: 2ml to 20ml
- Seals: Nitrile, Viton, EPDM, etc
- Cylinder: Precision bore borosilicate glass
- Scale: Permanently fired black ceramic
- Maximum Working Temperature: 60°C RPVC, 100°C Stainless steel
- Accuracy: ± 2% of actual reading
- For capacities from 50ml-250ml – see our CP100 Calibration Cylinder
- For capacities from 500ml to 10,000ml – see our CP110 Calibration Cylinder
