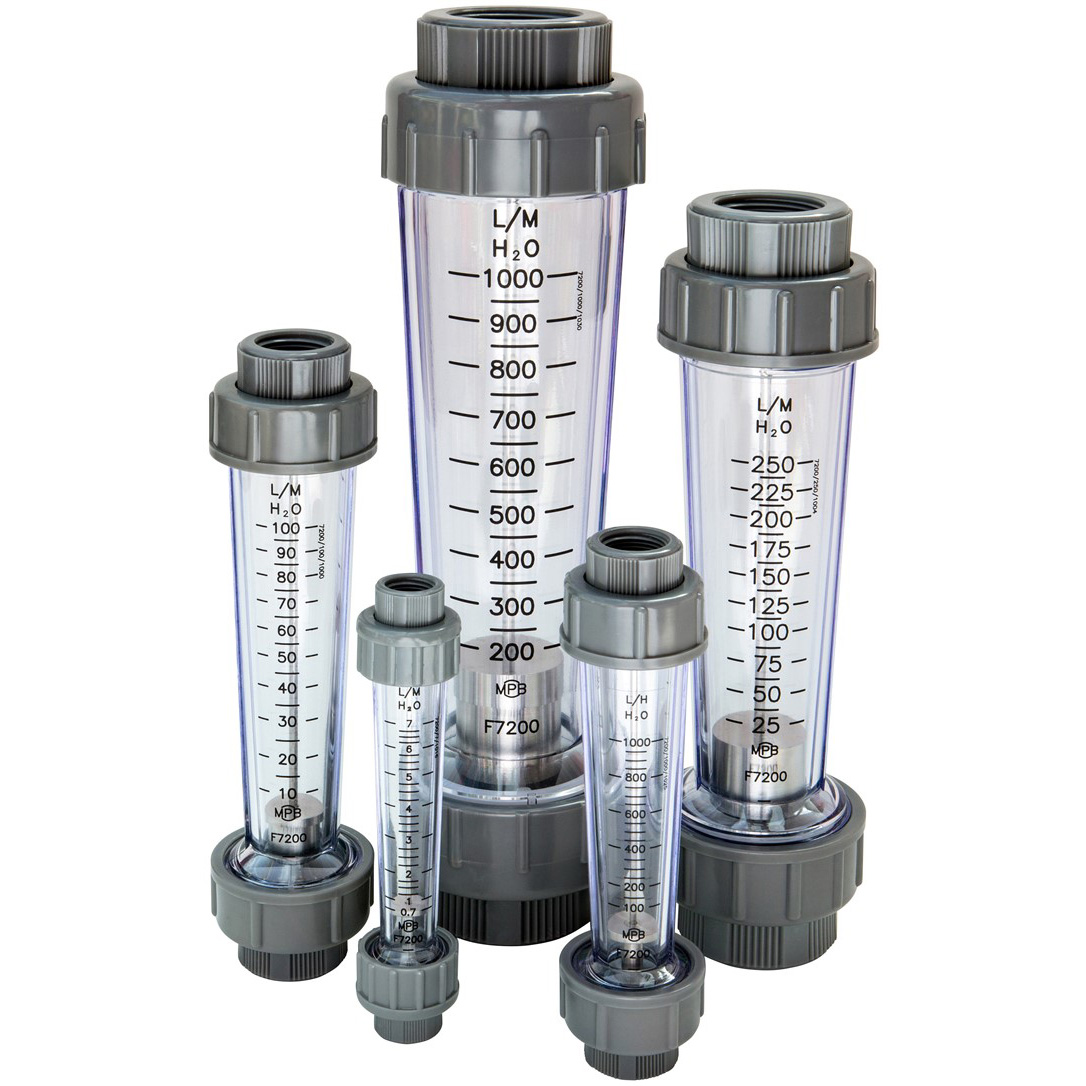

Series 7200 Clearview Variable Area Flowmeter

GENERAL INFORMATION

The MPB Series 7200 Variable Area Flowmeter has been designed to offer an economical solution for liquid flow measurements up to –

1M3/min (1000 L/min, 60M3/hr)

The 7200 Variable Area Flowmeter can be supplied with either BSPPF, or metric PVC solvent socket weld connections.



Download Technical Bulletin: Technical Bulletin

Download Installation Instructions: Installation Instructions

For further information please complete the form below, or contact us direct by telephone or e-mail.

Tel: +44 (0)1622 872401
Email: sales@mpbflowmeters.com



Description

SERIES 7200 FEATURES

  • EXCELLENT VALUE, SUPPLIED IN 5 LENGTHS
  • HIGH FLOW RATES UP TO 1000 L/MIN H2O (60M3/hr)
  • DIRECT READING OF INSTANTANEOUS FLOW RATES
  • EASY TO READ SCALE
  • ABS THREADED, OR GREY PVC SOCKET WELD CONNECTIONS
  • THE FLOW TUBE ASSEMBLY CAN EASILY BE REMOVED FROM THE FLOWMETER FOR CLEANING
  • EASY INSTALLATION AND REMOVAL FROM PROCESS LINE
  • GUIDED FLOATS TO GIVE VERY STABLE READINGS
  • MATERIALS OF CONSTRUCTION OFFER WIDE COMPATIBILITY WITH A RANGE OF PROCESS MEDIUMS
  • GOOD STANDARD WORKING PRESSURE RATINGS (UP TO 20 bar g)
  • SCALES SUITABLE FOR 7 YEAR EXPOSURE TO DIRECT SUNLIGHT
  • 10:1 TURN DOWN
  • GOOD STANDARD CORROSION RESISTANCE

SPECIFICATION

End Connection: Grey ABS, or Grey PVC Socket Weld

Seals: Viton

Metering Tube: Clear SAN

Float: 316 Stainless steel

Guide Rod: 316 Stainless steel

Scale: Permanently fired ceramic black

Weight:   20mm dia- 120g

                  32mm dia – 1kg

                  40mm dia – 2kg

                  63mm dia – 3kg

                  75mm dia – 4kg

Maximum Working Temperature: 60°C

Maximum Working Pressure: up to 20 bar g

Accuracy: ± 5% FSD predicted

STANDARD STOCK RANGES

RANGE (Water @ 20oC) SIZE (mm)  CONNECTIONS
L/hr L/min USGPM Overall Length Thread BSPP ABS Socket Dia (mm) ABS Grey PVC Socket Weld
40-400 0.7-7 200 G½” 20 ½” nb
50-500 1-10 200 20 ½” nb
100-1000 2-20 0.4-4 230 G¾” 32 ¾” nb
150-1500 2.5-25 0.7-7 230 G¾” 32 ¾” nb
250-2500 5-50 1.0-10 230 G¾” 32 ¾” nb
400-4000 6-60 1.6-16 290 G1” 40 1” nb
600-6000 10-100 2.5-25 290 G1” 40 1” nb
1-10 M3/H 16-160 4-40 350 G1½” 63 1½” nb
1.6-16 M3/H 25-250 7-70 350 G1½” 63 1½” nb
5-25 M3/H 40-400 10-100 430 G2” 75 2” nb
8-40 M3/H 130-650 30-170 430 G2” 75 2” nb
12-60 M3/H 200-1000 50-260 430 G2” 75 2” nb
