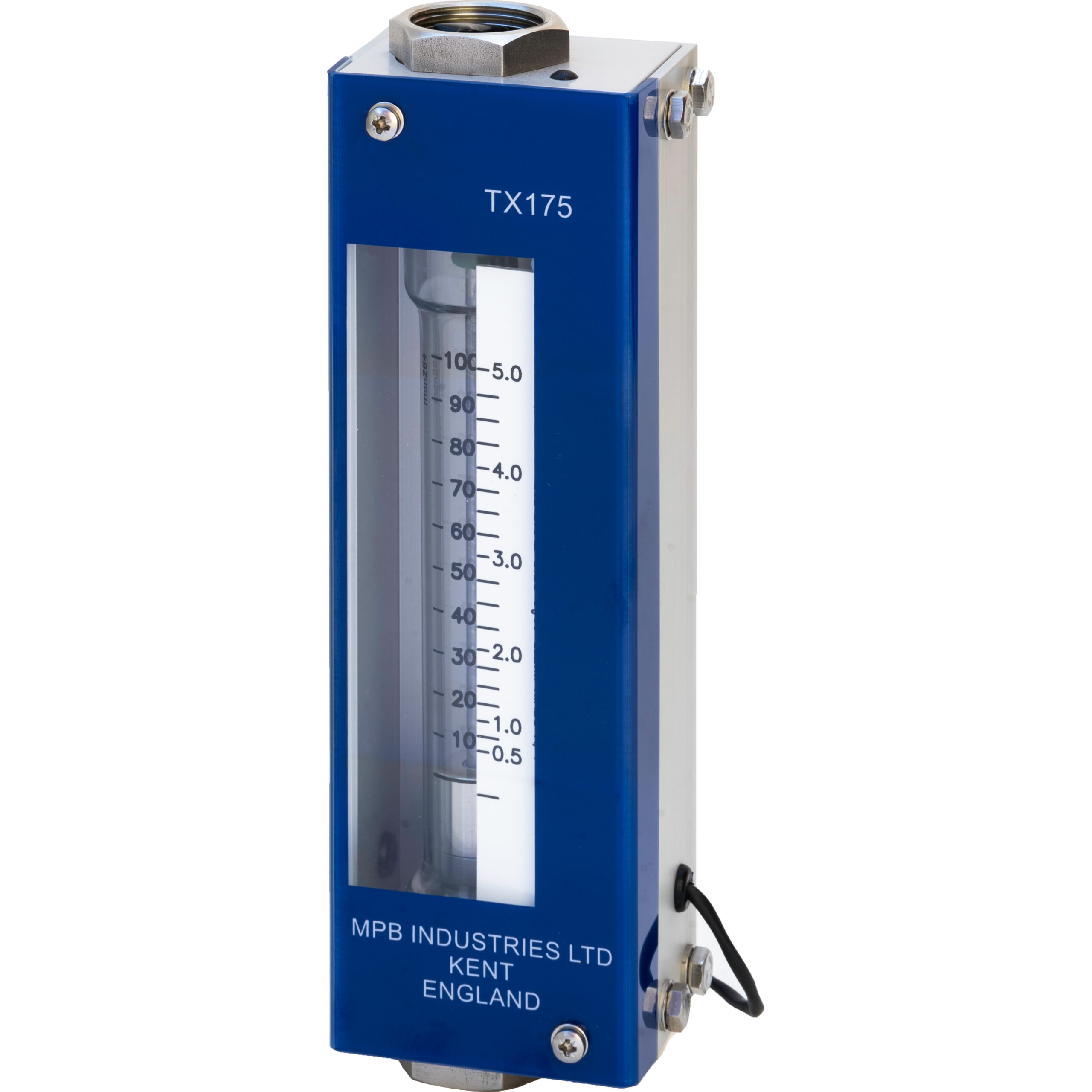

Series TX175/TX300 Transmitting Variable Area Flowmeter

GENERAL INFORMATION

The MPB Series TX175 Transmitting Flowmeter has been designed to meet demanding applications where a transmitted signal proportional to the flow rate, 4 – 20 mA, is required.

The TX175 Transmitting Flowmeter was developed from the MPB Series 1750 Flowmeter and incorporates the same features.

The TX175 Transmitting Flowmeter, whilst having a wide range of standard flow rates, can be used for almost any liquid or gas process.  The materials of construction will assist the designer in selecting a compatible flow transmitter for the medium being processed.

The TX175 Flow Transmitting Flowmeter is ideal for control requirements in the water, chemical and processing industries.



Download Technical Bulletin which shows standard flow rates: Technical Bulletin

Download Installation Instructions: Installation Instructions

For further information please complete the form below, or contact us direct by telephone or e-mail.

Tel: +44 (0)1622 872401
Email: sales@mpbflowmeters.com



Description



MPB SERIES TX175 TRANSMITTING FLOWMETER FEATURES

  • 4 – 20 mA TRANSMITTING SIGNAL OUTPUT
  • EASILY ADJUSTABLE ZERO AND SPAN SETTINGS
  • STANDARD AND CUSTOMIZED FLOW SCALES
  • EASY IN-SITU TUBE REMOVAL
  • RPVC, OR STAINLESS STEEL CONNECTIONS
  • FLANGED VERSIONS AVAILABLE
  • INTEGRAL SAFETY COVER
  • DIRECT READING OF FLOW RATE
  • MINIMAL MAINTENANCE
  • UTILISES THE MPB GUIDED FLOAT SYSTEM
  • REAR OF PANEL MOUNTING

SPECIFICATION

Chassis: Anodised aluminium to BSEN12373/AA25

Connections: Rigid PVC, or 303 Stainless steel

Process Connections: ½”, ¾” or 1” BSPPF, or flanged to customer specification

Cover: Polycarbonate

Seals: Nitrile, Viton, EPDM, etc

Metering Tube: Borosilicate glass with permanently fired metric scale

Scale: Adjustable scale plate black numerals on white permanently fired black ceramic

Floats: Anodised aluminium or 316 Stainless steel

Weight: 100 grams (typical)

Maximum Working Pressure: Gas: 6 bar g (non-shock), Liquid: 10 bar g (non-shock)

Maximum Working Temperature: 600C Nitrile, 100°C Viton

Accuracy: ± 5% FSD predicted

Connection: 2 metre flying lead

Operating Voltage: 9VDC – 36VDC with reverse-voltage protection

Output Current: 4 – 20 mA with zero and span adjustment

Flow reading: To be taken from scale, level with top of float
