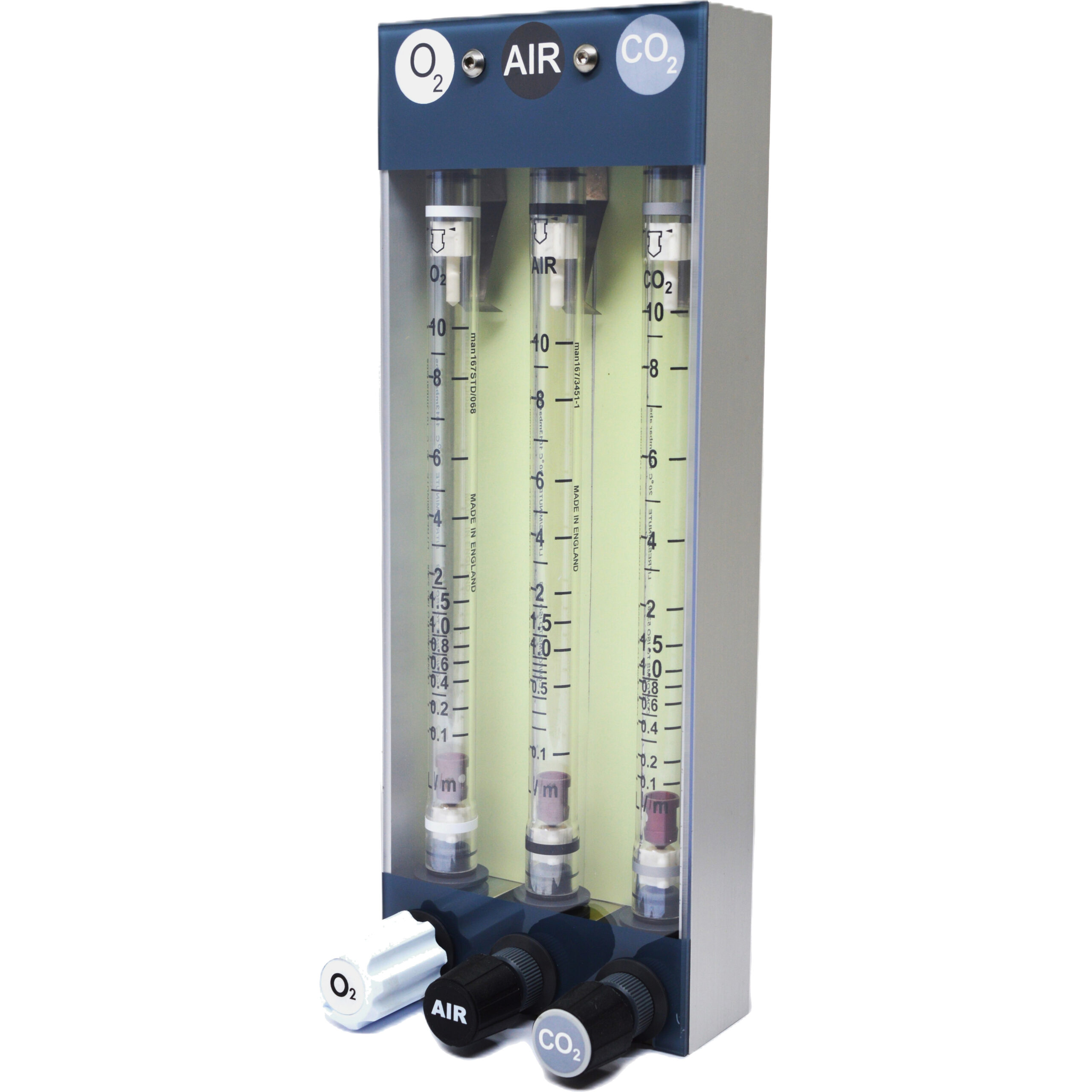

Series 1600 Triple Tube Veterinary Gas Variable Area Flowmeter
Home Series 1600 Triple Tube Veterinary Gas Variable Area Flowmeter

Series 1600 Triple Tube Veterinary Gas Variable Area Flowmeter

MPB produces a comprehensive range of veterinary anaesthetic flowmeters complete with safety cover, independent control valves, illuminous backing and earthing tags, suitable for trolley or wall mounting.



Albert Walker, CEO of AW Anaesthesia Services said: “AW Anaesthesia Services has been in business since 2012 and provides specialist anaesthetic equipment to the laboratory and veterinary industry. We design and manufacture equipment in the UK to meet the requirements of our customers and provide an excellent service post installation.



Our machines require the use of flowmeters namely; Oxygen, Nitrous Oxide, Carbon Dioxide and Nitrogen, and occasionally mixtures of these gases. Initially we imported flowmeters from Europe and the USA, but we discovered that the build quality was not to our satisfaction and there were reliability issues.



One of our customers had a need to combine certain gases at specific flow rates. Prior to our request for a bespoke design, we had bought three individual 1200 BV anaesthetic flowmeters and connected them together. However, this was time consuming and tedious, and we asked MPB Industries if they could help. Fortunately, they could help and designed one anaesthetic flowmeter incorporating three calibrated tubes to create a more aesthetically pleasing and easier to operate flowmeter to carry out this function.



MPB Industries were able to meet all our requirements in terms of build quality, reliability, and price. They have an excellent sales and technical support team and are very efficient at getting the products out on time.”



Download Technical Bulletin:  Technical Bulletin

For further information please complete the form below, or contact us direct by telephone or e-mail.

Tel: +44 (0)1622 872401
Email: sales@mpbflowmeters.com



Category: Tag:

Description

MPB SERIES 1600 TRIPLE TUBE VETERINARY GAS FLOWMETER FEATURES

  • All MPB flowmeters for anaesthetic gases conform to ISO 5358 / BS 4272 being electrically conductive.
  • MPB can also supply complete tube and float assemblies independently.
  • Accuracy of measurement is to class 2.5 VDI/VDE 3513 or better.
  • Process connections: Alochromed Aluminium, ¼” BSPPF
  • Our MPB design team will be pleased to discuss existing or new products, i.e. customised designs, scales, tube lengths, etc.
  • Colour banding supplied as standard.

STANDARD FLOW RATES

0.1-1 L/min Air, 0.1-2 L/min Air, 0.1-4 L/min Air, 0.1-8 L/min Air, 0.1-10 L/min Air, 0.1-15 L/min Air
0.1-1 L/min 02, 0.1-2 L/min 02, 0.1-4 L/min 02, 0.1-8 L/min 02, 0.1-10 L/min 02, 0.1-15 L/min 02
0.1-1 L/min N20, 0.1-2 L/min N20, 0.1-4 L/min N20, 0.1-10 L/min N2O, 0.2-12 L/min N20

PLEASE NOTE THAT WE HAVE A WIDE RANGE OF FLOW RATES TO SUIT THESE INSTRUMENTS.  PLEASE CONTACT MPB SALES OFFICE FOR FULL DETAILS.
