Series 1200BV-ANS/230 Anaesthetic Variable Area Flowmeter

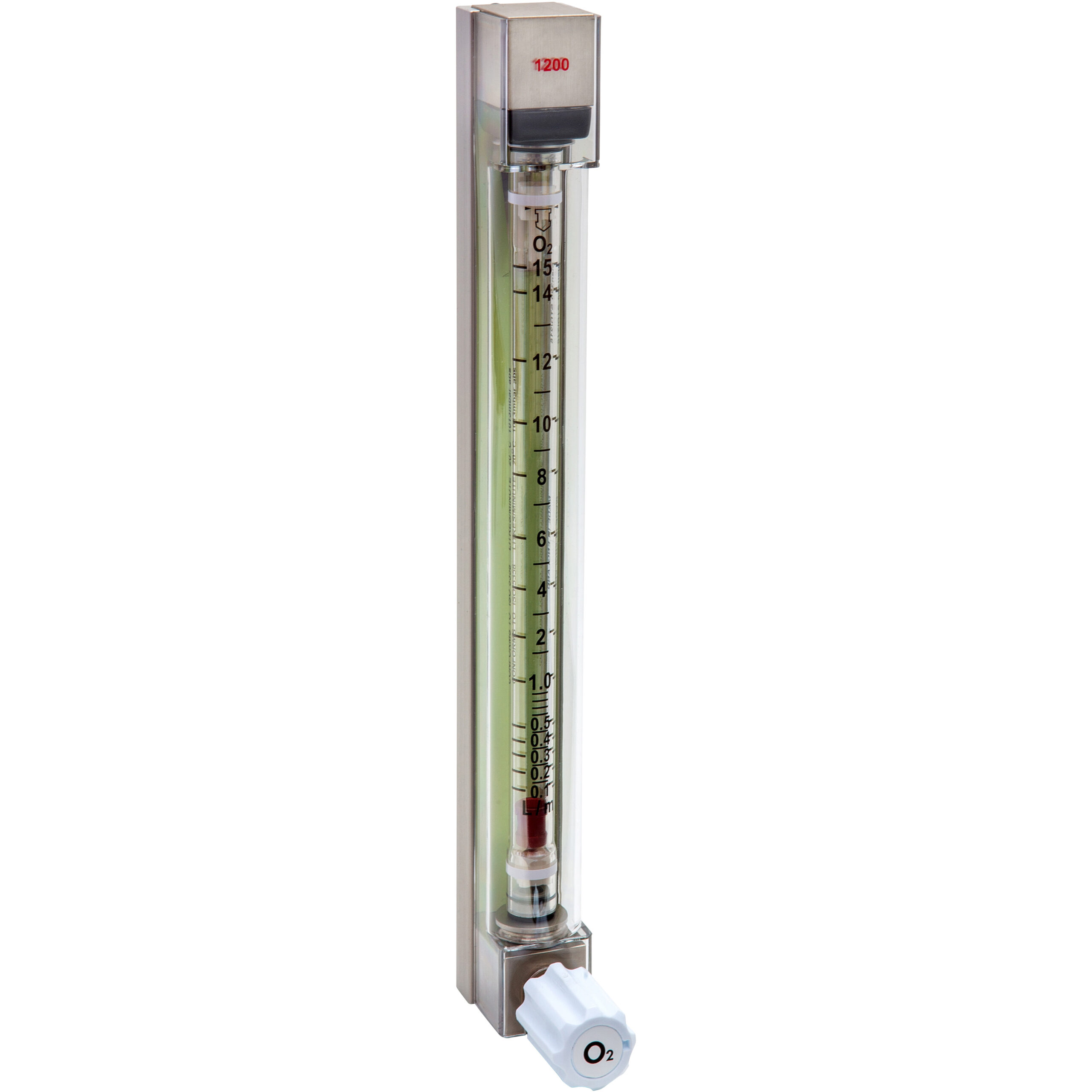

This version of the MPB Series 1200BV-ANS/230 Flowmeter is manufactured exclusively to house an anaesthetic 230mm standard length flow tube and will give an instantaneous flow rate of the standard anaesthetic gases.
The MPB Series 1200BV-ANS/230 Anaesthetic Flowmeter has an overall length of 300mm, with process centres of 275mm. This flowmeter is also available as a 1200BV-ANS/138 which has an overall length of 210mm and process centres of 185mm.
Normally the flow tube supplied exhibits dual scale calibration whereby the first third of the flow range is dedicated to 0.1-1 L/min and, for example, 2-10 L/min would be a linear scale for the remainder of the scale length.
The flow tube is fully conductive, both internally and externally, and is compliant to the international standard for human and veterinary anaesthesia flow measurement.
The flow tube utilises serial numbered floats and flow tubes to guard against incorrect reassembly when cleaning. In addition, the float exhibits a white dot so that the operator can clearly see the rotation.
Features
- Valved, or non-valved versions
- Frictionless, hence low head loss
- Easy in-situ tube removal and re-installation
- Standard and customised flow scales available
- Colour banding to international standard (please specify when ordering)
- Has a photo luminescent backing to provide a degree of back lighting in the event of power failure
- The flow tube is supplied complete with colour banding to international standards. Colour banding can also be supplied to other requirements
- The flowmeter is fitted with a contact device to earth the flow tube through to the mounting studs and chassis. This is to prevent any static build up
- In addition to standard anaesthetic gases, MPB can supply calibrated flow tubes for xenon, heliox, entinox, nitrox and nitric oxide as typical examples
Specification
- Chassis: Anodised aluminium to BSEN12373
- End Blocks: Nickel plated brass, or Stainless steel
- Process Connections: G¼” rear facing, or straight through
- Valve Stem: Stainless steel
- Cover: Polycarbonate
- Seals: Viton
- Metering Tube: Borosilicate glass 230mm long with permanently fired scale and fully conductive to ISO 5358 and BS 4272
- Scale: Permanently fired (black)
- Weight: 670 grams
- Plumb Bob Float: Red hard anodised aluminium with white rotation indicator
- Maximum Working Pressure: Gas: up to 20 bar g (non-shock)
- All flow tubes calibrated at 1013 mbar abs 20°C
- Maximum Working Temperature: 100°C Viton
- Accuracy: All flow tubes supplied with this instrument have been calibrated to confirm their accuracy falls within the limits set by ISO 5358 and Class 2.5 VDI/VDE 3513. All calibration equipment is traceable to National UK Standards
