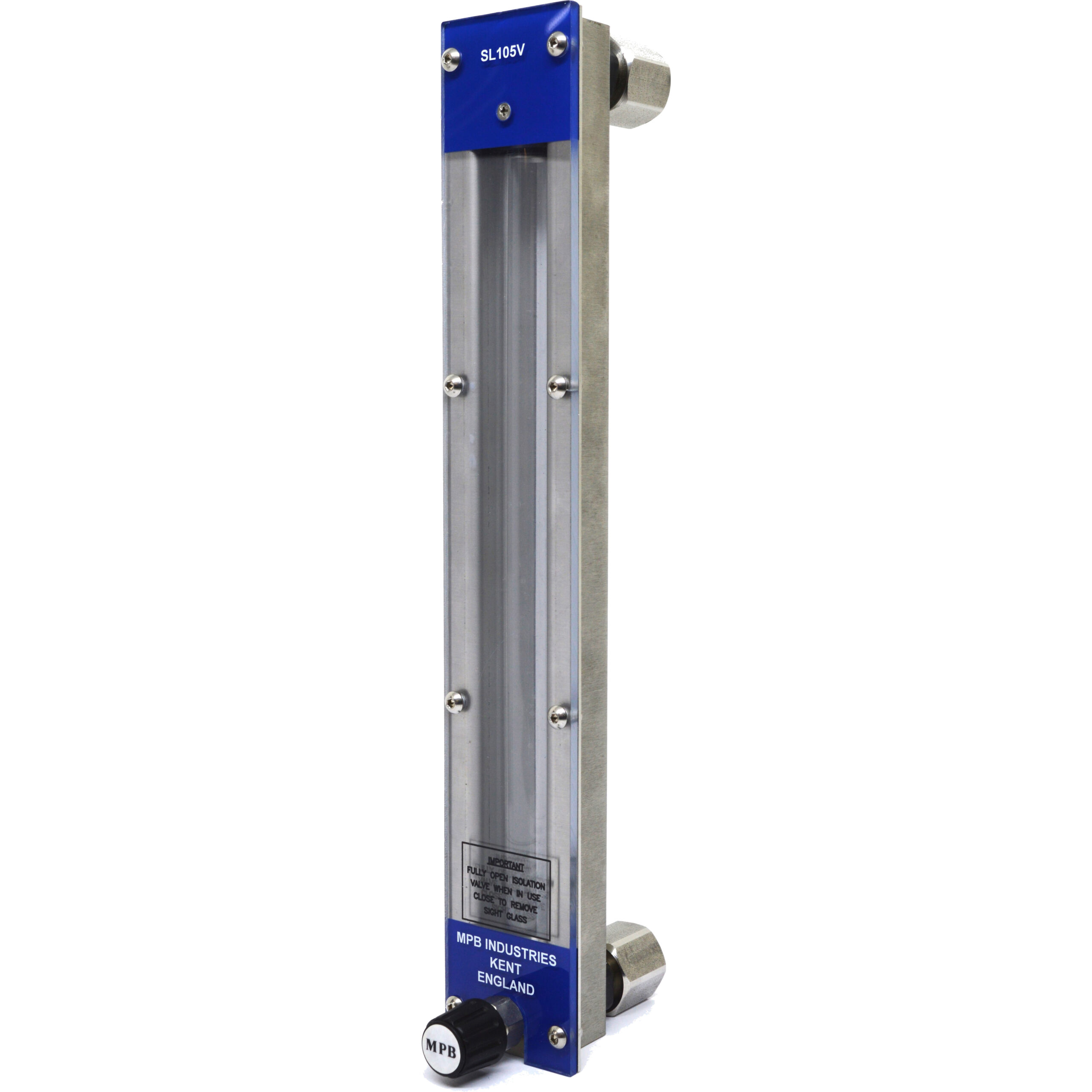

Series SL105SV Sight Level Indicator
The MPB Series SL105SV is a custom-built sight level indicator, which can be manufactured in a variety of lengths in Stainless steel offering a wide range of process fluids and vessel sizes up to 1 metre centres and incorporating a polycarbonate safety cover.
It is a tank level indicator where an instant indication of level is required. A ball check safety valve and independent isolation valve are also included, which allow for the easy removal and cleaning of the sight glass.
The complete instrument is manufactured in stainless steel with a glass, or polycarbonate sight tube and safety cover.
Features
- Lengths available up to 1 metre
- Connections rear facing ½” BSPTF – (Rc ½)
- Easy in-situ tube removal
- Suitable for aggressive fluids
- Stainless steel construction and connections as standard giving excellent all weather protection
- Incorporates ball check safety valve
- Supplied with an independent sight tube isolation valve for easy removal and cleaning
- Mounting brackets available upon request
Specification
- Chassis: 316 Stainless steel
- Process Connections: 303 Stainless steel as standard, alternatives available
- Standard Process Centres: 300mm, 400mm, 500mm, 600mm, 800mm and 1000mm
- Cover width 50mm
- Connection Type: ½” BSPTF (Rc ½), NPT, or flanged also available
- Tube: Clear polycarbonate, or borosilicate glass
- Seals: Viton, or Nitrile depending on process fluid and temperature
- Cover: 4mm clear polycarbonate
- Temperature Rating: 100°C maximum (dependent on specification)
- Pressure Rating: Normally atmospheric
- Scale Plate: Calibrated to suit
